Narrow Bezel 55 Inch Interactive Digital Wall , 60Hz 16dots Touch Screen Video Wall

Name: Narrow Bezel 55 Inch Interactive Digital Wall , 60Hz 16dots Touch Screen Video Wall
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-LW550HN16
Availability: InStock

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN16

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                interactive video display, interactive touch screen video wall


Product Name:	Interactive Video Wall	Backlight:	LED
Resolution:	1920*1080	Input Voltage:	AC 220v-250v
Total Physical Bezel:	1.7mm	Refresh Rate:	60Hz
Panel Size:	55''	Panel Height:	682.34 Mm

Product Name:	Interactive Video Wall
Backlight:	LED
Resolution:	1920*1080
Input Voltage:	AC 220v-250v
Total Physical Bezel:	1.7mm
Refresh Rate:	60Hz
Panel Size:	55''
Panel Height:	682.34 Mm

Product Description

LW550HN16 55 Inch Interactive Video Wall Seamless Refresh Rate 60Hz

Narrow Bezel:

55 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;

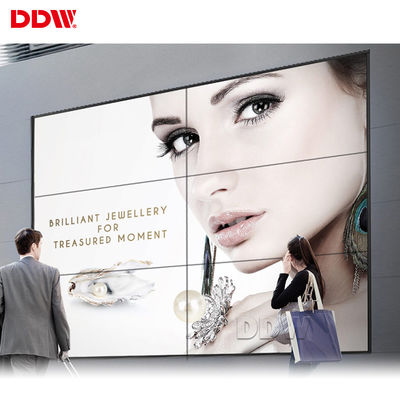

Interactive Video Wall show commercial advertisement, food picture, video play, product picture;

View Angle

178 degree wide viewing angle, the full range of display;
Different modules optional: such as heating module, built in camera, air conditioner etc;

HD Panel Display

HD video wall unit: high brightness, contrast and gamut.
Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 500cd/m2;

Functions:

Supporting 225 units (15×15) multi-matrix;
Single screen display. Each unit can display the picture independently;
Image overlay. Superimposed on screen another picture;
Easy to choose full screen or multi-screen display by control video wall controller.

Panel dimension and interfaces:

Dimension: 1211.54 x 682.34 mm;
Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

Total bezel width

Bezel size: 1.7 mm;
The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

Connection topology and applications:

Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
Applications: Financial center, real estate center, security room, cinema, theater, etc;

Specifications:

Model No:	DDW-LW550HN16
LCD Technology	LG IPS LCD
Active Screen Diagonal	55"
Total Bezel Width	1.7 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Panel Dimension(WxHxD)	1211.54×682.34x68.1mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
