| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN14 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Huge Video Wall | Type: | TFT |
|---|---|---|---|
| Panel Size: | 55 Inch | Max Resolution: | 1920x1080 |
| Brightness: | 700nits | Response Time: | 5ms |
| Input Voltage: | AC 110-240V | Feature: | Good Vision Effect |
| High Light: | interactive video display,interactive wall display |
||

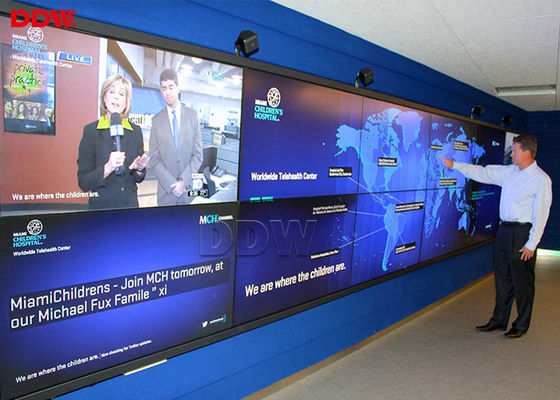

Good Vision Effect Interactive Video Wall With Ultra Narrow Bezel 1.7mm
Huge Video Wall Quick Details
Input Voltage: AC 110-240V
Brightness: 700nits
Total bezel width: 1.7mm
Resolution: 1920*1080
Contrast: 4000:1
Surface: anti-glare
Video wall monitor power consummtion:250W
Application condition: indoor and semi-outdoor
Huge Video Wall features:
1, Original Industrial grade LCD video wall panel,16:9 LG a-Si TFT-LCD
2, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
3, FHD video wall unit--- High brightness,high contrast,High gamut .
4, Flexible structure design ---easy installation ,extensible,arbitrary combination
5, Stable performance,suitable working for a long time
Huge Video Wall Applications
Huge Video Wall is the best cost-effective model , which can be widely used for CCTV control room Conference and meeting rooms , GYM center , Lobbies , Security Monitoring Center , Surveillance and Retail Center , Restaurant and hotel , Retail Shopping Mall Advertising and information Displays , Public Installations , Exhibition and show center , Live show , Rental and advertising Center , Museums , Church , Transportation and Mass Info Display systems.
Huge Video Wall Specifications
| Active Screen Diagonal | 55" 16:9 |
| Bezel Width | Total: 1.7mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.63×0.63mm |
| Active Display Area(WxH) | 1209.6×680.4mm |
| Panel Dimension(WxHxD) | 1211.4×682.2x65.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Huge Video Wall Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
DVI HDMI DP | Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
Packaging & Delivery
Packaging Details: quality carton with full wood box packing
Delivery Detail: 3 working days
