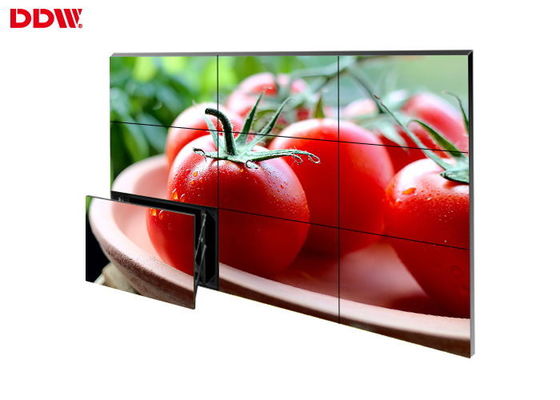

Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Interactive Touch Screen Video Wall | Feature: | Frameless |
|---|---|---|---|
| Size: | 46 LCD Video Wall Display | Total Physical Bezel: | 3.5 Mm |
| Resolution: | 1920*1080 | Type: | Horizontal |
| Panel Width: | 1021.98mm | Panel Height: | 576.57mm |
| Highlight: | interactive video display,interactive touch screen video wall |
||
Product Description
Frameless Interactive Touch Screen Video Wall , Horizontal 46 LCD Video Wall Display
Interactive Touch Screen Video Wall Feature
- Full hardware framework, no CPU and operation system;
- No virus infection, high security
- Energy saving with standby power watts lower than 5W
- Encryption processor with built-in registration,which is the best way in the market
- Color-temperature adjusting system makes it possible to adjust the color difference
- Supports smart switching and recognition of signal which need remote or others software
- Smart light sensor can help to adjust the brightness of led backlight automatically
- Support customized LOGO play when power on, the function of USB upgrade
- The software can also work together with matrix by easy operation and built-in different matrix protocol which Is also available for clients’ customization needs.
Interactive Touch Screen Video Wall basic informations:
- With original Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- Dot Pitch: 0.5302mm(H)*0.5302mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
Interactive Touch Screen Video Wall Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Interactive Touch Screen Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
