Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN12
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Name: |
Interactive Video Wall |
Advantage: |
Narrow Bezel |
Daisy Chain: |
RJ45 Loop |
Control Method: |
RS232 Control |
Total Physical Bezel: |
3.5 Mm |
Resolution: |
1920*1080 |
Brightness: |
700 Nits |
Feature: |
Good Vision Effect |
Name: |
Interactive Video Wall |
Advantage: |
Narrow Bezel |
Daisy Chain: |
RJ45 Loop |
Control Method: |
RS232 Control |
Total Physical Bezel: |
3.5 Mm |
Resolution: |
1920*1080 |
Brightness: |
700 Nits |
Feature: |
Good Vision Effect |

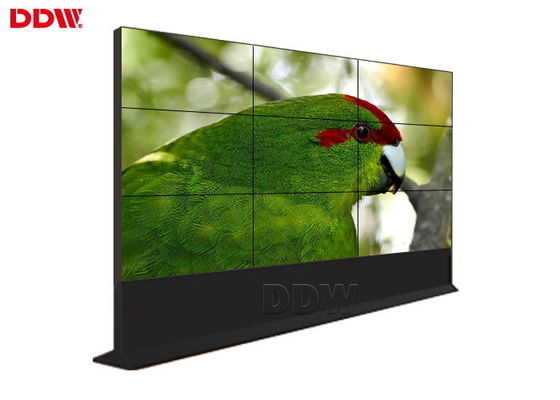

Narrow Bezel Interactive Video Wall With Good Vision Effect RS232 Control
Interactive Video Wall Application:
The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public
Interactive Video Wall Parameters
1, 55 inch original DDW commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
2, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
3, FHD video wall unit , high brightness , high contrast , high gamut
4, Flexible structure design , easy installation , extensible , arbitrary combination
5, Stable performance , suitable working for a long time
Interactive Video Wall features
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Interactive Video Wall Specifications
Panel Specifications | |
Active Screen Diagonal | 55'' Interactive Video Wall |
Bezel Width | Total: 3.5mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | LED |
Luminance(nits) | 700cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 0.85 |
Storage Temperature | -20-60°C | -4-140°F |
Storage Humidity | 85% non-condensing |
Interactive Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
