| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV55FHM-NS0 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Seamless Interactive Video Wall | Control: | Remote Control |
|---|---|---|---|
| Total Physical Bezel: | 5.3 Mm | Resolution: | 1920*1080 HD |
| Brightness: | 500 Nits | Backlit Type: | LCD |
| HDMI Input: | 2 | Refresh Rate: | 60Hz |
| High Light: | interactive video display,interactive touch screen video wall |
||

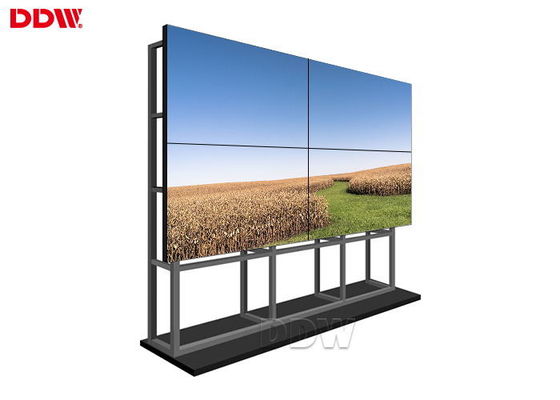

HD 55" Seamless Interactive Video Wall Dynamic Image Remote Control
Interactive Video Wall Advantages
1. Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
2. High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
3. Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
4. Low power consumption and low heat radiation
5. Long service life lowers the cost of usage and maintenance
6. Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
7. Ulta thin and light weighted: The ultra thin and lightweighted design makes it easy to transport and install.
8. Economical and practical: High performance and high quality make it cost less.
Interactive Video Wall features
Built-in splicing module , Support splice function
Support creating one window PIP across the screen , roaming service , scaling , PIP
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Interactive Video Wall Specifications
| Panel Specifications | |
| LCD Technology | BOE a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Bezel Width | Total: 5.3mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1077.6×607.8x55.7mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Interactive Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
