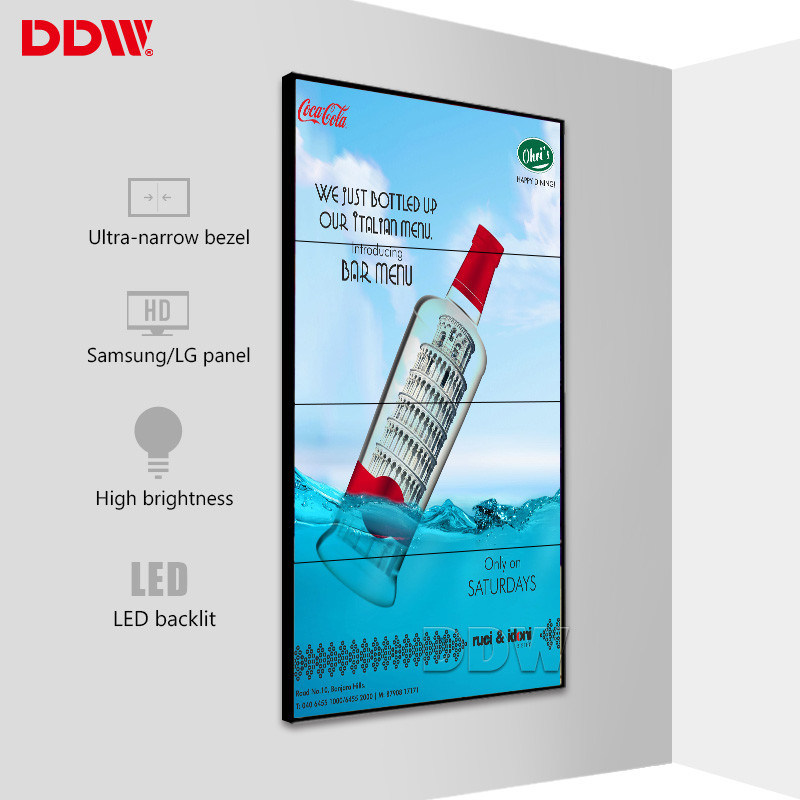

Seamless Multiple TV Video Wall 46 Inch Narrow Bezel With Daisy Chain Processor

Name: Seamless Multiple TV Video Wall 46 Inch Narrow Bezel With Daisy Chain Processor
Brand: DDW
SKU: DDW-LW460HN11
Rating: 4.9 (111 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN11

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                multi display video wall, seamless lcd video wall


Panel Size:	46 Inch	Bezel Width:	3.5mm
Surface:	Anti-glare	Product Name:	Commercial Video Wall
Backlight:	LED	Color:	8Bit , 16M
Brightness:	500nits	Aspect Ratio:	16:9

Panel Size:	46 Inch
Bezel Width:	3.5mm
Surface:	Anti-glare
Product Name:	Commercial Video Wall
Backlight:	LED
Color:	8Bit , 16M
Brightness:	500nits
Aspect Ratio:	16:9

Product Description

Seamless LG Commercial Video Wall 46 Inch With Daisy Chain Processor LW460HN11

Application

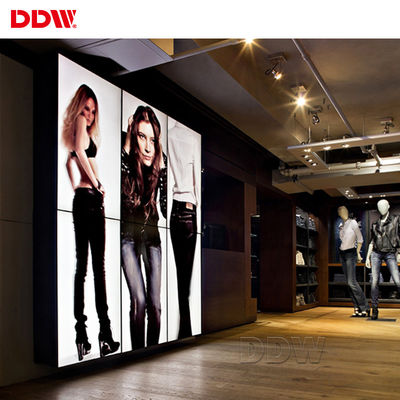

Commercial Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.

46" Commercial Video Wall main parameters

Original DDW commercial grade lcd video wall display panel
500nits brightness,MEGA DCR contrast
FHD physical resolution 1920x1080
Only 3.5mm ultra narrow bezel, high quality ,Practical ,good vision effect.
Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design --- easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time

Commercial Video Wall Key features:

Support a variety of signal ports.
Built-in splicing module, Support splice function
Support Creating one window PIP across the screen, roaming service, scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output.
Input by remote control with wire, mobile receiver head.

Specifications:

Model No:	DDW-LW460HN11
LCD Technology	SAMSUNG LCD
Active Screen Diagonal	46"
Total Bezel Width	3.5mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Pixel Pitch(WxH)	0.5302x0.5302
Active Display Area(WxH)	1018.08×572.67 mm
Panel Dimension(WxHxD)	1021.98×576.57x72.1mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)

Seamless Multiple TV Video Wall 46 Inch Narrow Bezel With Daisy Chain Processor 0
