| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN12 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Commercial Video Wall | Backlight: | LED |
|---|---|---|---|
| Response Time: | <=6ms | Display Colors: | 8Bit,16.7M |
| Power Supply: | AC100~240V 50/60 HZ | Cooling: | Low Noise Fans |
| Aspect Ratio: | 16:9 | Storage Humidity: | 85% Non-condensing |
| High Light: | lcd screen wall,seamless lcd video wall |
||

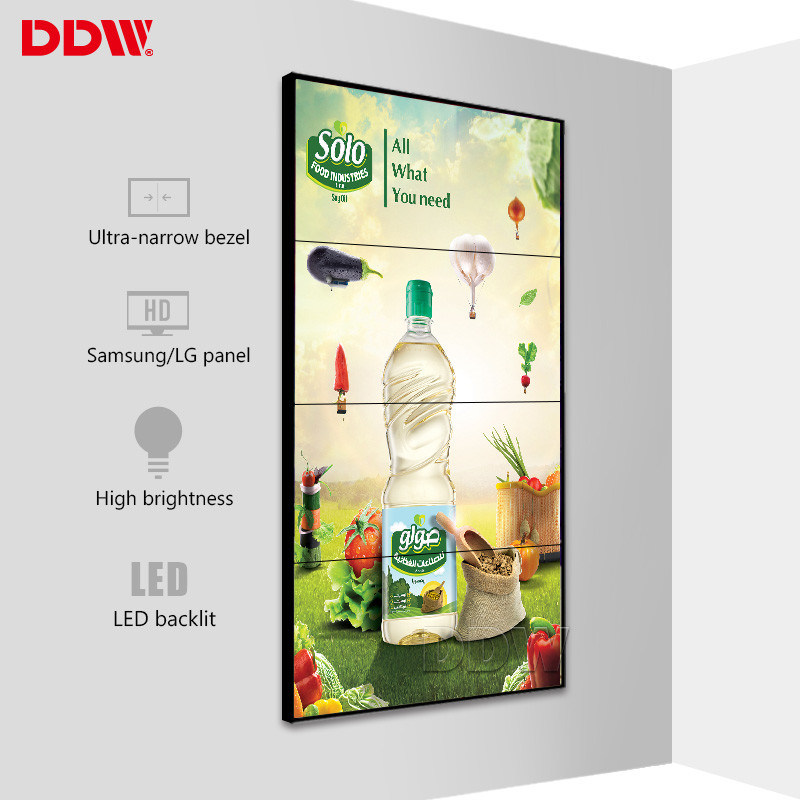

700nits High Brightness Commercial Video Wall 55 inch DDW-LW550HN12
Commercial Video Wall Introduction
Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Commercial Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
55 inch Commercial Video Wall main parameters
Specifications
| Model No: |
DDW-LW550HN12 |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.63x0.63mm |
| Active Display Area(WxH) |
1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
| Total Bezel Width | 3.5 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
Commercial Video Wall Video Wall Board Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Interface | input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
