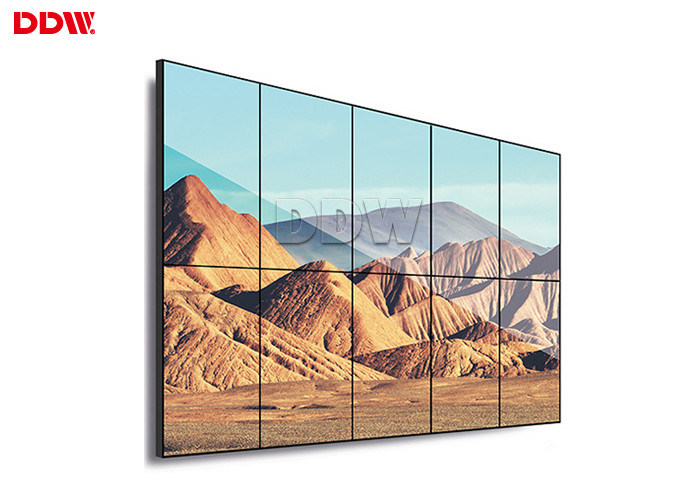

Customized Panel Size Commercial Video Wall For Rental And Advertising Center
Application of LCD Video Wall Display
LCD Video Wall Display is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , live show , rental and advertising center , museums , church , transportation and mass info display systems.
LCD Video Wall Display Introduction
LCD Video Wall Display is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
LCD Video Wall Display Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support Creating one window PIP across the screen, roaming service, scaling,PIP
4. Dynamic image without motion trail
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
LCD Video Wall Display Specifications
| Model No: |
DDW-LW490DUN-TJB1 LCD Video Wall Display
|
| Active Screen Diagonal |
49'' |
| Pixel Pitch(WxH) |
0.5593x0.5593mm
|
| Active Display Area(WxH) |
1073.8 × 604 mm
|
| Panel Dimension(WxHxD) |
1075.38x605.8x53.6mm
|
| Total Bezel Width |
1.8 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
5000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
LCD Video Wall Display Board Specification
| Support |
PC |
color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| DVI |
color |
24bit |
| HDMI |
Line synchronization range |
30-80KHZ |
| DP |
Field synchronization range |
50-75HZ |
| Interface |
input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
LCD Video Wall Display main parameters
- FHD physical resolution 1920x1080
- Only 1.8 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- FHD video wall unit--- High brightness,high contrast,high gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
