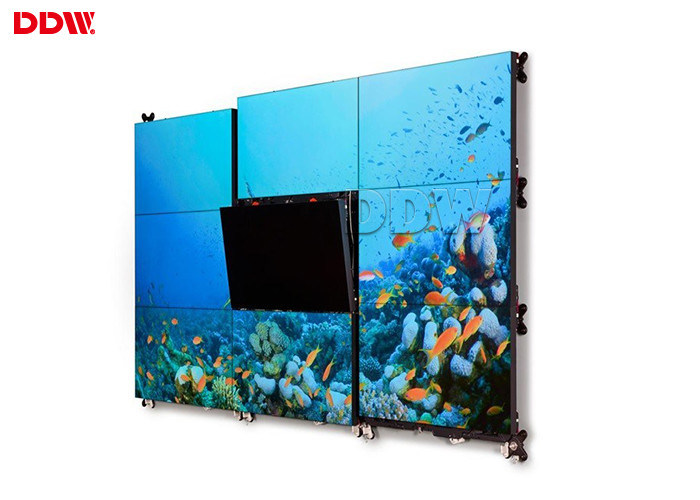

16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input

Name: 16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input
Brand: DDW
SKU: DDW-LW550HN11
Rating: 4.7 (171 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN11

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                multi display video wall, lcd screen wall


Input:	2 X HDMI Input	Bezel Width:	3.5 Mm
Surface:	Anti-glare	Brightness:	500 Nits
Product Name:	Seamless Monitor Wall	Color:	8Bit , 16M
Aspect Ratio:	16:9	Panel Brand:	SAMSUNG

Input:	2 X HDMI Input
Bezel Width:	3.5 Mm
Surface:	Anti-glare
Brightness:	500 Nits
Product Name:	Seamless Monitor Wall
Color:	8Bit , 16M
Aspect Ratio:	16:9
Panel Brand:	SAMSUNG

Product Description

16:9 Aspect Ratio Seamless Monitor Wall / Large Display Wall 2 X HDMI Input

Seamless Monitor Wall informations:

Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: floor standing cabinets;
Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

Our Product:

1) Indoor digital signage systems;

2) Outdoor LCD digital totems;

3) UNB LCD video walls;

4) Hardware video wall controllers;

5) Stretched bar LCD displays;

6) Indoor Outdoor LED displays.

Seamless Monitor Wall Specifications:

Model No:	DDW-LW550HN11 Seamless Monitor Wall
LCD Technology	SAMSUNG LCD
Active Screen Diagonal	55''
Total Bezel Width	3.5 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Panel Dimension(WxHxD)	1213.5x684.3x67.7 mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

Seamless Monitor Wall Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode

Seamless Monitor Wall key features:

Panel size: Optional
Ultra narrow frame design, the narrowest bezel is 3.5 mm and the bezel can be optional.
Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
