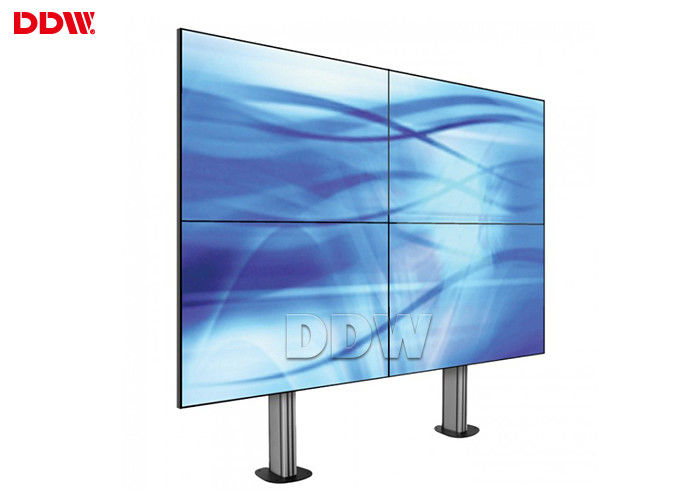

Flexible Structure Design Commercial Video Wall Built In Splicing Module
parameters of Commercial Video Wall
1. Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .
3. FHD physical resolution 1920x1080
4. Only 5.3 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Flexible structure design ---easy installation ,extensible,arbitrary combination
6. Stable performance,suitable working for a long time
Application of Commercial Video Wall:
Commercial Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Commercial Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
Commercial Video Wall Specifications
| Resolution: |
1920*1080 |
Bezel Width: |
5.3 Mm |
| Design: |
Flexible Structure Design |
Brightness: |
500 Nits |
| Product Name: |
DDW LCD Video Wall |
Backlight: |
LED |
| Panel Width: |
1023.98mm |
Panel Height: |
578.57mm |
Video Wall Borad Specifications
| Support |
PC |
Color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
