| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Screen: | 9 Pieces | Brightness: | 500 Nits |
|---|---|---|---|
| Product Name: | LCD Wall Display Screen | Backlight: | LED |
| Refresh Rate: | 60Hz | Response Time: | <=6ms |
| Dot Pitch: | 0.63x0.63 Mm | Application: | Meeting Rooms |
| High Light: | multi display video wall,lcd screen wall |
||

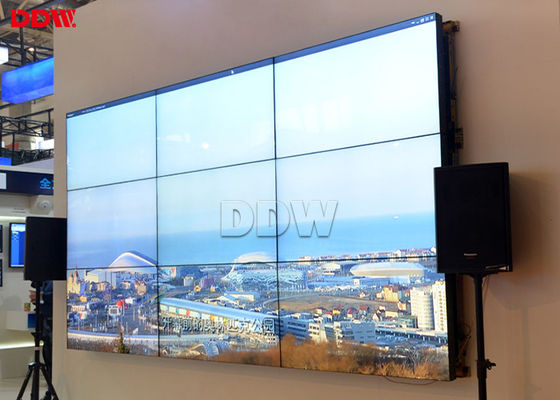

9 Pieces Seamless LCD Video Wall , Meeting Rooms LCD Wall Display Screen
LCD Wall Display Screen Application
LCD Wall Display Screen can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
LCD Wall Display Screen Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Dynamic image without motion trail
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
LCD Wall Display Screen main parameters
1. Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut .
3. FHD physical resolution 1920x1080
4. Only 1.7 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. Flexible structure design ---easy installation ,extensible,arbitrary combination
7. Stable performance,suitable working for a long time
LCD Wall Display Screen Specifications
| Model No: | DDW-LW550HN16 LCD Wall Display Screen |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) |
1211.54 x 682.34x68.1mm |
| Total Bezel Width | 1.7 mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
Shenzhen DDW Technology Co.,Ltd started in 2009, a leading manufacturer and developer of commercial LCD displays withown facility 7000sqm in China. We focus on customized Indoor outdoor digital totems, touch screen kiosk, Stretched Bar LCD,LCD video wall system,video wall controller and more LCD display solutions. With high quality standard, meticulous workmanship, strict quality control,professional service, DDW aims to provide our customers, distributors and suppliers with win-win cooperation.
