Highlight:
lcd screen wall
, seamless lcd video wall

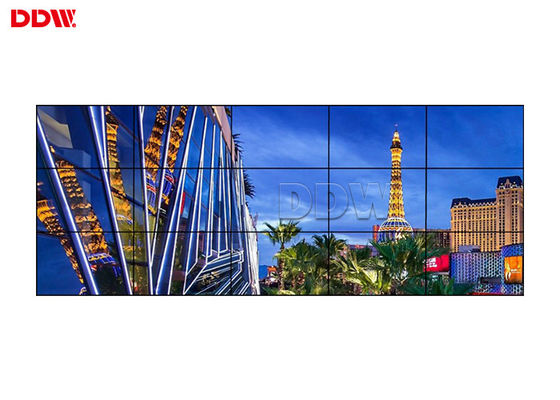

Samsung Panel Commercial Video Wall For Public Installations / Show Center
Commercial Video Wall Key features:
- Built-in splicing module, Support splice function
- Support creating one window PIP across the screen, roaming service, scaling,PIP
- Unique DNX motion supplement image processing technology,
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.
Commercial Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 700nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .
3. Only 1.7mm ultra narrow bezel, high quality ,practical ,good vision effect.
4. Stable performance,suitable working for a long time
Commercial Video Wall Application
Advertising Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Commercial Video Wall Specifications:
| Model No: |
DDW-LW550HN14 Commercial Video Wall |
| LCD Technology |
SAMSUNG LCD |
| Active Screen Diagonal |
55" |
| Bezel Width |
Total: 1.7 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
700 cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm
|
| Active Display Area(WxH) |
1209.6 × 680.4 mm
|
| Panel Dimension(WxHxD) |
1211.54x682.34x65.1mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
Commercial Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
