| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THA3 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Panel Size: | 55 Inch | Bezel Width: | 1.8 Mm |
|---|---|---|---|
| Product Name: | Commercial Video Wall | Backlight: | LED |
| Design: | Stylish Design | Aspect Ratio: | 16:9 |
| Working Humidity: | 0.85 | Application: | CCTV Control Room Conference |
| High Light: | lcd screen wall,seamless lcd video wall |
||

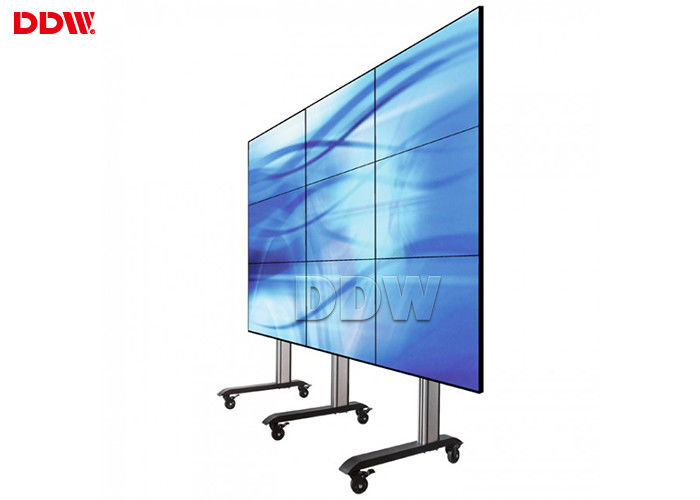

Stylish Design Commercial Video Wall For CCTV Control Room Conference
LCD Screen Wall Application
LCD Screen Wall is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
LCD Screen Wall basic informations:
LCD Screen Wall key features:
LCD Screen Wall Specifications:
| Model No: | DDW-LW550DUN-THA3 LCD Screen Wall |
| Active Screen Diagonal | 55'' |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6×680.4mm |
| Panel Dimension(WxHxD) |
1211.4x682.2x53.3 mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Commercial Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
