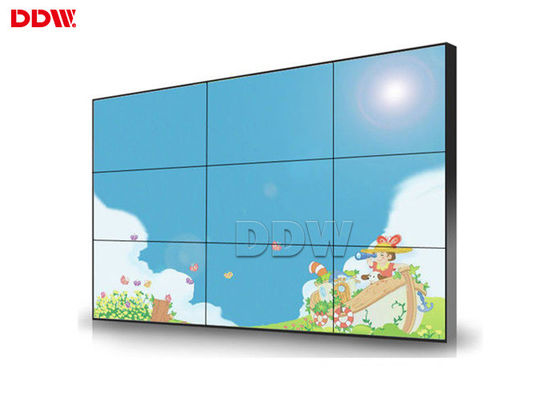

Easy Maintenance Commercial Video Wall With Modular Components 700 Nits
Seamless Video Wall Displays Key features
1. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
2. HD video wall unit--- High brightness,high contrast,high gamut .
3. Flexible structure design ---easy installation ,extensible,arbitrary combination
4. Stable performance,suitable working for a long time
5. Original DDW commercial grade lcd video wall panel ,16:9 Innolux a-Si TFT-LCD
6. 700nits brightness,5000:1 contrast
7. Only 3.5mm ultra narrow bezel.high quality ,Practical ,good vision effect.
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
Seamless Video Wall Displays Specifications
| Model No: |
DDW-DV550FHM-NV3 Seamless Video Wall Displays |
| Active Screen Diagonal |
55" |
| Total Bezel Width |
3.5 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
700 cd/㎡ |
| Contrast |
5000:1 |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1213.5x684.3x60.39mm
|
| White Point |
10,000 K |
| Display Colors |
1.07GB colors |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
≦160W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0℃～50℃ |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
Our Product:
1) Indoor digital signage systems;
2) Outdoor LCD digital totems;
3) UNB LCD video walls;
4) Hardware video wall controllers;
5) Stretched bar LCD displays;
6) Indoor Outdoor LED displays.
