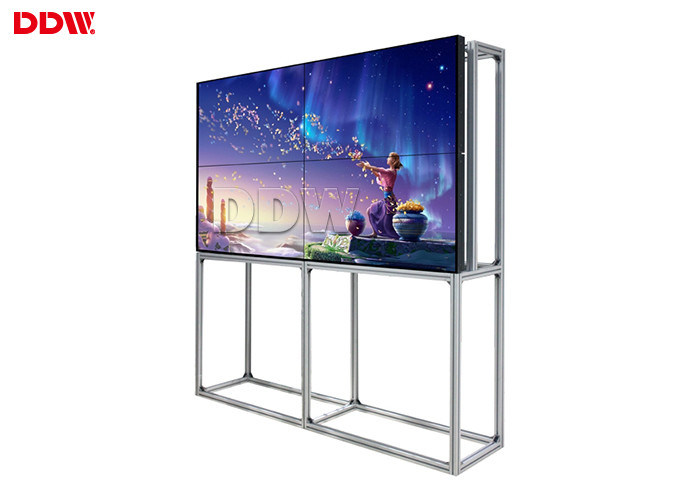

5.3 Mm Bezel Video Wall Advertising / 55 Video Wall Display Low Noise Fans
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV55FHM-NS0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Panel Size: | 55 Inch | Bezel Width: | 5.3 Mm |
|---|---|---|---|
| Product Name: | Video Wall Advertising | White Point: | 10,000 K |
| Refresh Rate: | 60Hz | Surface: | Anti-glare |
| Life: | >60,000(hrs) | Cooling: | Low Noise Fans |
| Highlight: | multi display video wall,lcd screen wall |
||
Product Description
5.3 Mm Bezel Video Wall Advertising / 55 Video Wall Display Low Noise Fans
Video Wall Advertising key features:
- Panel size: 46″, 49″, 55″, 60″, 65″ optional;
- Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
- Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
- The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
- Interfaces: 2xHDMI,DP loop, DVI , VGA ,CVBS ,USB , Switch, Power port;
- Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
- Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
- Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
Video Wall AdvertisingSpecifications:
| Model No: | DDW-DV55FHM-NS0 Video Wall Advertising |
| Active Screen Diagonal | 55'' |
| Bezel Width | Total: 5.3 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5593x0.5593 mm |
| Active Display Area(WxH) |
1073.8 × 604 mm |
| Panel Dimension(WxHxD) |
1077.6x607.8x55.7mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Video Wall Advertising Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
