products

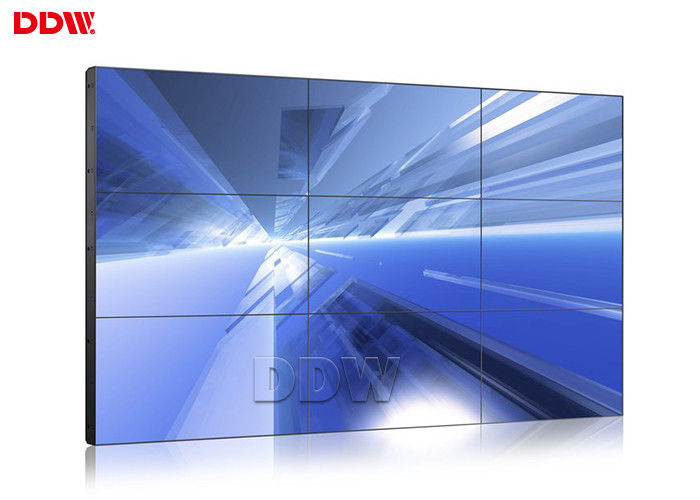

1920x1080 Resolution 46 Video Wall Display , Multi Display Video Wall 500 Nits

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN09
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Resolution: 1920*1080 Brightness: 500 Nits
Product Name: 46 Video Wall Display Input Voltage: AC 220v-250v
Total Physical Bezel: 5.3 Mm Refresh Rate: 60Hz
Heat Dissipation: 819 BTU/h (max)
High Light:

multi display video wall

,

seamless lcd video wall


Product Description

1920x1080 Resolution 46 Video Wall Display , Multi Display Video Wall 500 Nits



46 Video Wall Display basic informations:

  •  46 Video Wall Display With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;



46 Video Wall Display main parameters



1. Original DDW commercial grade lcd video wall display panel

2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

3. FHD physical resolution 1920x1080

4. Only 5.3 mm ultra narrow bezel, high quality ,practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output



46 Video Wall Display Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Input by remote control with wire, mobile receiver head.



46 Video Wall Display Specifications:



Model No: DDW-LW460HN09 46 Video Wall Display
LCD Technology LG IPS LCD
Active Screen Diagonal 46"
Total Bezel Width 5.3 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1023.98x578.57x79.5mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



46 Video Wall Display Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
