Anti Glare Multiple Tv Video Wall / Splice Function Seamless Video Wall Displays

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW490DUN-THC1
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Name: Multiple Tv Video Wall Support: Splice Function
Input Voltage: AC 220v-250v MTBF: > 100,000h
Cooling: Low Noise Fans Working Temperature: 0°C~50°C
Total Physical Bezel: 3.5mm Dot Pitch: 0.5593x0.5593mm
High Light:

lcd screen wall

,

seamless lcd video wall


Product Description

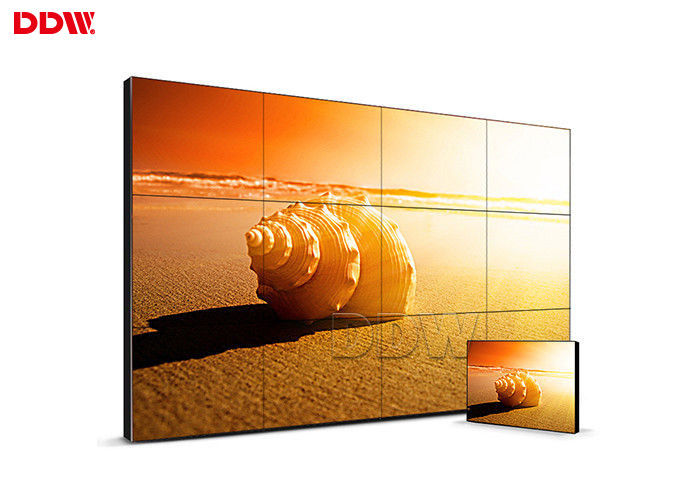

Anti Glare Multiple Tv Video Wall / Splice Function Seamless Video Wall Displays





Multiple Tv Video Wall Introduction



Multiple Tv Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



Multiple Tv Video Wall Key features:



1. Built-in splicing module, Support splice function

2. Support creating one window PIP across the screen, roaming service, scaling,PIP

3. Dynamic image without motion trail

4. Splicing image processing RS-232 RJ45 loop-circuit input/output.

5. Input by remote control with wire, mobile receiver head.



Multiple Tv Video Wall parameters



1. Original DDW commercial grade lcd video wall display panel,16:9 LG TFT-LCD

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. FHD video wall unit--- High brightness,high contrast,high gamut .





Multiple Tv Video Wall Specifications



Model No: DDW-LW490DUN-THC1
Active Screen Diagonal 49''
Pixel Pitch(WxH)

0.5593x0.5593 mm

Active Display Area(WxH)

1073.8 × 604 mm

Panel Dimension(WxHxD)
1077.6x607.8x55.6 mm
Total Bezel Width 3.5 mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 500cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing
