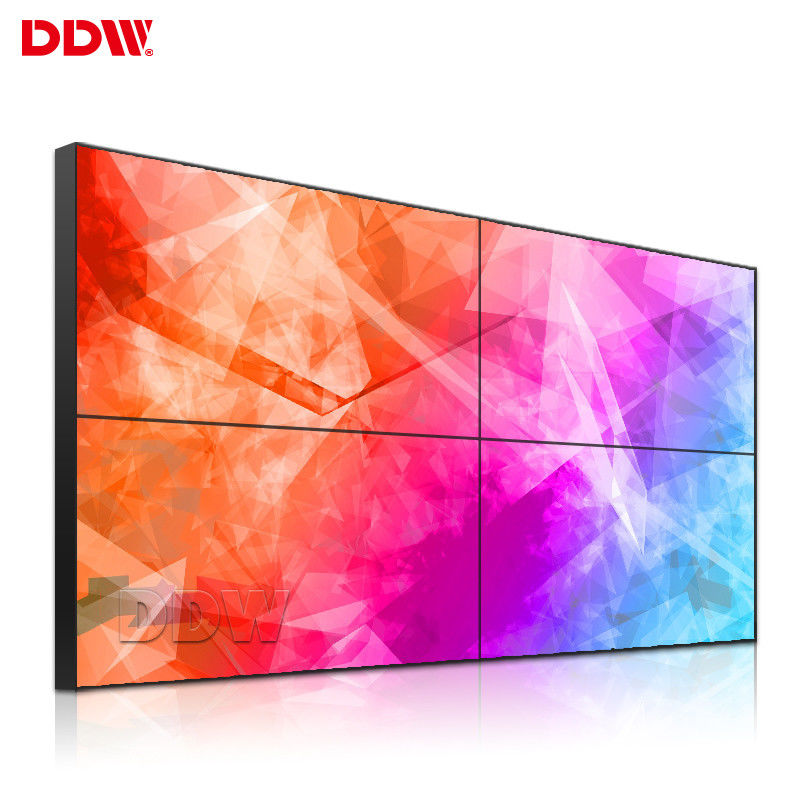

Luxury Interactive Video Wall , 4 Screen Video Wall 2 X HDMI Input
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Screen No.: | 4 Screen | Bezel Width: | 3.5 Mm |
|---|---|---|---|
| Surface: | Anti-glare | Brightness: | 500 Nits |
| Product Name: | Interactive Video Wall | Color: | 8Bit , 16M |
| Aspect Ratio: | 16:9 | Panel Brand: | SAMSUNG |
| Highlight: | multi display video wall,lcd screen wall |
||
Product Description
Luxury Interactive Video Wall , 4 Screen Video Wall 2 X HDMI Input
Interactive Video Wall key features:
- Panel size: 46″, 49″, 55″, 60″, 65″ optional;
- Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
- Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
- The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
- Interfaces: 2xHDMI,DP loop, DVI , VGA ,CVBS ,USB , Switch, Power port;
- Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
- Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
- Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
Our Product:
1) Indoor digital signage systems;
2) Outdoor LCD digital totems;
3) UNB LCD video walls;
4) Hardware video wall controllers;
5) Stretched bar LCD displays;
6) Indoor Outdoor LED displays.
Interactive Video Wall Specifications:
| Screen No.: | 4 Screen | Bezel Width: | 3.5 Mm |
|---|---|---|---|
| Surface: | Anti-glare | Brightness: | 500 Nits |
| Product Name: | Interactive Video Wall | Color: | 8Bit , 16M |
| Aspect Ratio: | 16:9 | Panel Brand: | SAMSUNG |
Interactive Video Wall Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
Facilities:
We group companies own following facilities to accomplete the business:
1) 2500㎡ production department
2) Our own metal factory 3000㎡
3) Our own panel warehouse 1500㎡
All departments R&D Technical, Purchase, Production (Assemble-QC-Packing-Shipping-Aftersales), Domestic & Overseas Sales, Merchandiser and Public Relationship joint corporately & effectively.
