| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW490DUN-THC1 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Surface: | Anti-glare | Product Name: | Touch Screen Wall Display |
|---|---|---|---|
| Input Voltage: | AC 220v-250v | MTBF: | > 100,000h |
| Cooling: | Low Noise Fans | Working Temperature: | 0°C~50°C |
| Total Physical Bezel: | 3.5mm | Application: | Outdoor / Indoor |
| High Light: | lcd screen wall,seamless lcd video wall |
||

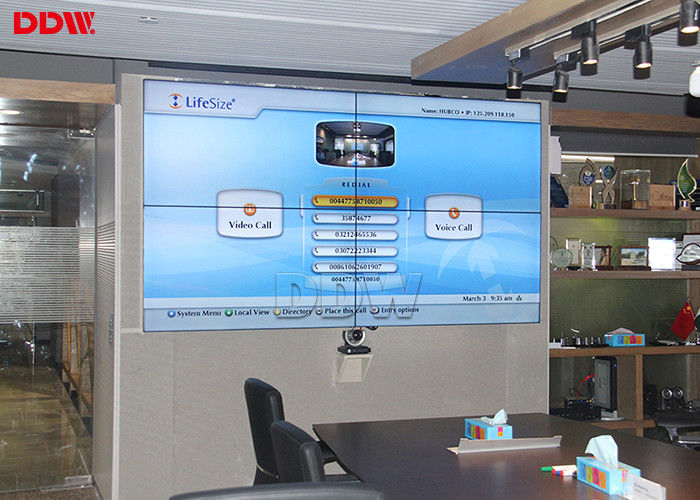

Outdoor Touch Screen Wall Display , Large Multi Screen Display Wall
Touch Screen Wall Display Introduction
1. Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2. Interface type: VGA, DVI and HD connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode
11. Excellent display
Touch Screen Wall Display Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
Touch Screen Wall Display Specifications
| Model No: | DDW-LW490DUN-THC1 |
| Active Screen Diagonal | 49'' |
| Pixel Pitch(WxH) |
0.5593x0.5593 mm |
| Active Display Area(WxH) |
1073.8 × 604 mm |
| Panel Dimension(WxHxD) |
1077.6x607.8x55.6 mm
|
| Total Bezel Width | 3.5 mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
Touch Screen Wall Display Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
FAQ
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
7.Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
8.Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or skype me,i will reply you ASA
