Long Using Life Commercial Video Wall For Security Monitoring Center 50000 Hours
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Commercial Video Wall | Advantage: | Long Using Life |
|---|---|---|---|
| Resolution: | 1920*1080 | Input Voltage: | AC 220v-250v |
| Total Physical Bezel: | 1.7mm | Refresh Rate: | 60Hz |
| Brightness: | 700nit | Dimension: | 1020.02x574.61 Mm |
| Highlight: | lcd screen wall,seamless lcd video wall |
||
Product Description

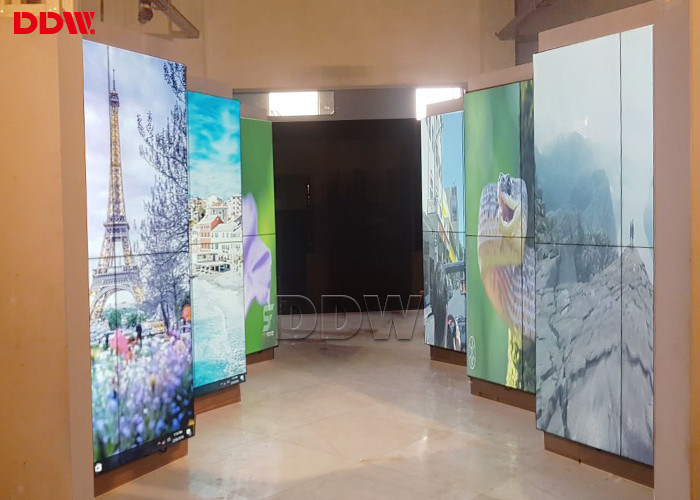

Long Using Life Commercial Video Wall For Security Monitoring Center 50000 Hours
Commercial Video Wall Application
Commercial Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Commercial Video Wall Narrow Bezel:
- 46 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
- 5×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;
Commercial Video Wall View Angle
- 178 degree wide viewing angle, the full range of display;
- Different modules optional: such as heating module, built in camera, air conditioner etc;
Commercial Video Wall HD Panel Display
- HD video wall unit: high brightness, contrast and gamut.
- Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;
Commercial Video Wall Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Panel dimension and interfaces:
- Dimension: 1020.02x574.61 mm;
- Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Commercial Video Wall Specifications:
| Model No: | DDW-LW460HN13 |
| LCD Technology | SAMSUNG LCD |
| Active Screen Diagonal | 46 Inch |
| Total Bezel Width | 1.7 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1020.02x574.61x68.1mm
|
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Commercial Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
