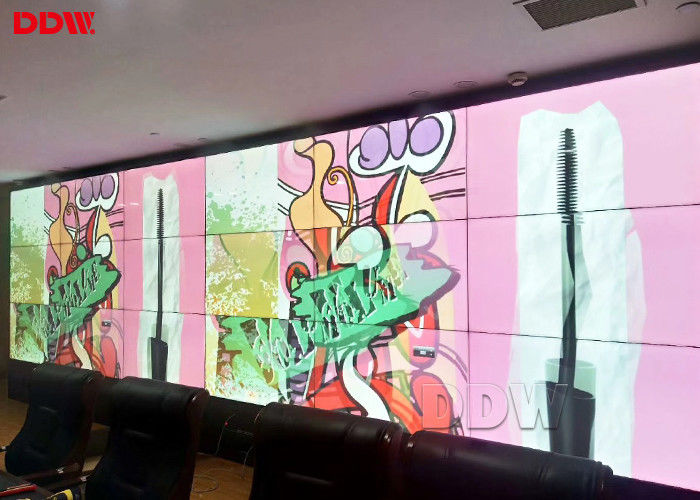

Horizontal Seamless Video Wall Displays / Multi LCD Wall Display Screen
Seamless Video Wall Displays Main features:
1. Samsung industrial panel, support 24 hours continously playing;
2. The gaps between panels is 5.3mm;
3. Full hardware structure, no CPU and operation system;
4. Easy installation, only fixed them together by metal bracket ;
5. Easy operation , can operate the system together with the software flexible,we offer free software;
6. Support RS-232 serial ports remote control;
7. Support multi signal input include BNC, YPbPr,VGA,HDMI,RS232;
8. Images are displayed smoothly and naturally without time delay and tailing, and the image quality are quite smoothy.
Seamless Video Wall Displays main parameters
1. Original DDW commercial grade lcd video wall display panel
2. 500 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 1.7 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,High gamut .
7. Flexible structure design ---easy installation ,extensible,arbitrary combination
8. Stable performance,suitable working for a long time
Seamless Video Wall Displays Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
Seamless Video Wall Displays Specifications:
| Model No: |
DDW-LW460HN14 |
| Active Screen Diagonal |
46" |
| Total Bezel Width |
1.7 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500 cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Dot Pitch |
0.5302x0.5302mm
|
| Panel Dimension(WxHxD) |
1020.02×574.61x68mm
|
| White Point |
10,000 K |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
Seamless Video Wall Displays Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
FAQ
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
