| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN11 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Name: | 46 LCD Video Wall Display | Bezel Width: | 3.5mm |
|---|---|---|---|
| Surface: | Anti-glare | Feature: | Multi Functional |
| Backlight: | LED | Color: | 8Bit , 16M |
| Brightness: | 500nits | Aspect Ratio: | 16:9 |
| High Light: | multi display video wall,seamless lcd video wall |
||

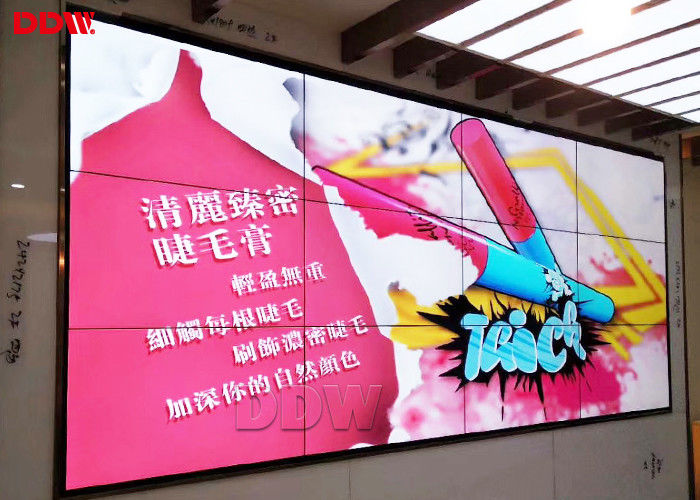

Multi Functional 46 LCD Video Wall Display / Popular Interactive Video Display
46 LCD Video Wall Display Introduction
1. Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2. Interface type: VGA, DVI and HD connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
46 LCD Video Wall Display Application
46 LCD Video Wall Display can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
46 LCD Video Wall Display Key features:
46 LCD Video Wall Display Specifications:
| Model No: | DDW-LW460HN11 |
| LCD Technology | SAMSUNG LCD |
| Active Screen Diagonal | 46" |
| Total Bezel Width | 3.5mm |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5302x0.5302 |
| Active Display Area(WxH) |
1018.08×572.67 mm |
| Panel Dimension(WxHxD) | 1021.98×576.57x72.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
46 LCD Video Wall Display Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
