Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW490DUN-THC1 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Panel Size: | 49 Inch | Bezel Width: | 3.5 Mm |
---|---|---|---|
Brightness: | 500 Nits | Product Name: | Seamless Video Wall |
Color: | 8Bit , 16M | Size: | 4x4 |
Panel Width: | 1077.6 Mm | Panel Height: | 607.8 Mm |
High Light: | multi display video wall,lcd screen wall |

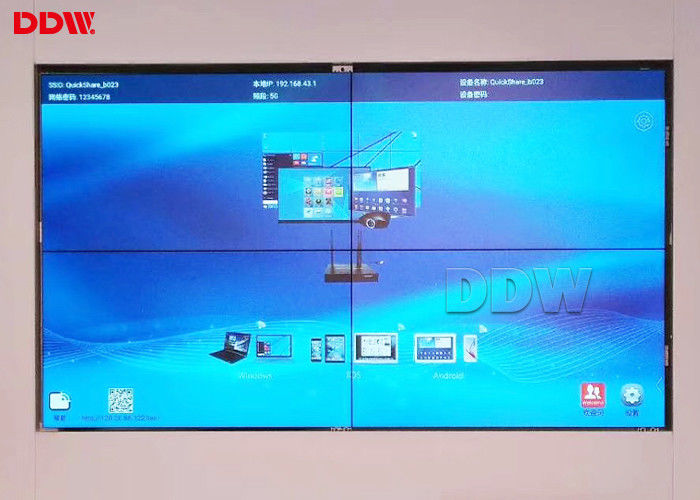

Multi Display Seamless Video Wall , Large 4x4 Video Wall Advertising
All the LCD video wall panels are 100% original and brand new, no fake panels exists, quality promised;
And also Provided 12 months of warranty, you can return any fake panels and charges by us,
so from here you can enjoy the real panels directly from original factory.
Seamless Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 BOE TFT-LCD
2. 500nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .
3. Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
4. Flexible structure design ---easy installation ,extensible,arbitrary combination
5. Stable performance,suitable working for a long time
Seamless Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
Seamless Video Wall Specifications
Model No: | DDW-LW490DUN-THC1 Multi Display Seamless Video Wall , Large 4x4 Video Wall Advertising | |||||||||
Active Screen Diagonal | 49'' | |||||||||
Total Bezel Width | 3.5 mm | |||||||||
Aspect Ratio | 16:9 | |||||||||
Backight System | LED | |||||||||
Luminance(nits) | 500 cd/㎡ | |||||||||
Contrast | 5000:1 | |||||||||
Viewing Angle | H 178°|V 178° | |||||||||
Panel Dimension(WxHxD) |
1077.6x607.8x55.6mm |
|||||||||
White Point | 10,000 K | |||||||||
Display Colors | 1.07GB colors | |||||||||
Refresh Rate | 60Hz | |||||||||
Response Time | <=6ms | |||||||||
Life(hrs) | >60,000(hrs) | |||||||||
MTBF | > 100,000 h | |||||||||
Surface | Anti-glare | |||||||||
Standby Power Consumption | <3W | |||||||||
Maximum Power Consumption | ≦160W | |||||||||
Power Supply | AC100~240V 50/60 HZ | |||||||||
Cooling | Low noise fans | |||||||||
Heat Dissipation | 819 BTU/h (max) | |||||||||
Working Time Capacity | 7x24x365hours | |||||||||
Application Area | Indoor/Semi Outdoor | |||||||||
Working Temperature | 0℃~50℃ | |||||||||
Working Humidity | 0.85 | |||||||||
Storage Temperature | -20-60°C | -4-140°F | |||||||||
Storage Humidity | 85% non-condensing |
Commercial Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
