Highlight:
lcd screen wall
, seamless lcd video wall

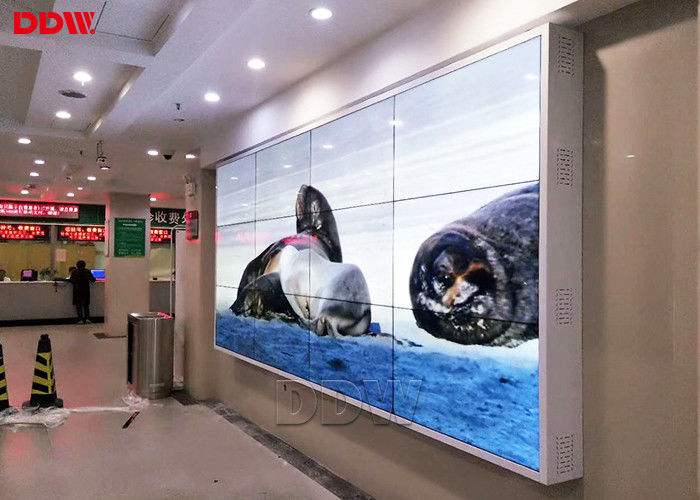

Narrow Bezel LCD Screen Wall 3.5mm / Customized LCD Video Wall Display
LCD Screen Wall Key features
1. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
2. HD video wall unit--- High brightness,high contrast,high gamut .
3. Flexible structure design ---easy installation ,extensible,arbitrary combination
4. Stable performance,suitable working for a long time
5. Original DDW commercial grade lcd video wall panel ,16:9 Innolux a-Si TFT-LCD
6. 700nits brightness,5000:1 contrast
7. Only 3.5mm ultra narrow bezel.high quality ,Practical ,good vision effect.
LCD Screen Wall Specifications
| Panel Size: |
55 Inch |
Bezel Width: |
3.5mm |
| Brightness: |
700 Nits |
Product Name: |
LCD Screen Wall |
| Color: |
8Bit , 16M |
Aspect Ratio: |
16:9 |
| Display Colors: |
1.07GB Colors |
Size: |
Customized |
LCD Screen Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
