Supermarket Commercial Video Wall 46 Inch 1.7mm Ultra Narrow Bezel 700nits
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Commercial Video Wall | Backlight: | LED |
|---|---|---|---|
| Application: | Shopping Mall | Cooling: | Low Noise Fans |
| Bezel Size: | 1.7 Mm | Panel Size: | 46'' |
| Dot Pitch: | 0.5302x0.5302 Mm | Responsive Time: | 6ms |
| Highlight: | lcd screen wall,seamless lcd video wall |
||
Product Description
46 inch 1.7mm ultra narrow bezel LCD video wall DDW-LW460HN13
DDW LCD video wall key features:
- Panel size: 46″, 49″, 55″, 60″ ; Optional.
- Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
- Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
- The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
- Interfaces: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output;
- Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
- Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
- Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
DDW LCD video wall basic informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Dot Pitch: 0.5302x0.5302 mm; Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
Narrow Bezel:
- 46 inch LCD video wall narrow bezel available: 1.7 mm, 3.5 mm, 5.3 mm;

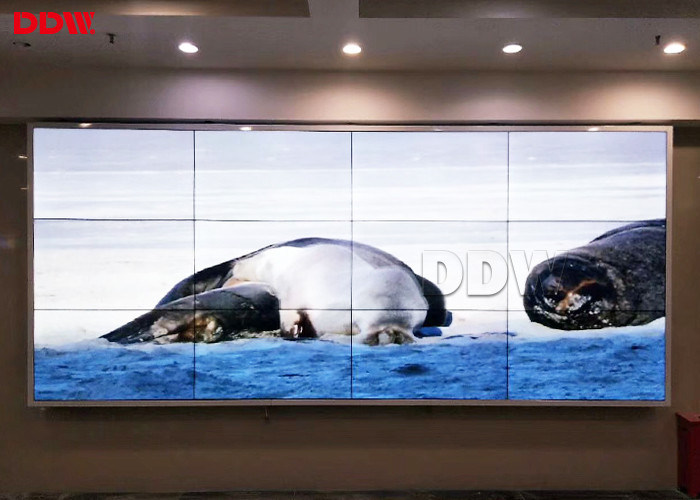

- 3×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;
View Angle
- 178 degree wide viewing angle, the full range of display;
- Different modules optional: such as heating module, built in camera, air conditioner etc;
HD Panel Display
- HD video wall unit: high brightness, contrast and gamut.
- Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;
Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Panel dimension and interfaces:
- Dimension: 1020.02x574.61x68.1mm;
- Interface: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Total bezel width
- Bezel size:1.7 mm;
- The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;
Connection topology and applications:
- Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
- Applications: Financial center, real estate center, security room, cinema, theater, etc;
| Panel Size | 46″ |
| Total bezel width | 1.7 mm |
| Active Display Area |
1020.02x574.61x68.1mm |
| Resolution | 1920 x 1080; 3840 x 2160 |
| Brightness | 700 nits |
| Contrast ratio | 4000:01:00 |
| Responsive time | 6ms |
| Warranty | 1 year |
LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
