Highlight:
multi display video wall
, seamless lcd video wall
Good Vision Effect Commercial Video Wall For Cctv Control Room Conference
Commercial Video Wall Key features
- Original DDW commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD
- 500nits brightness , 4000:1 contrast.UHD video wall unit , high brightness, high contrast, high gamut
- 1080P UHD physical resolution 1920*1080
- Only 3.5 mm narrow bezel , high quality , practical , good vision effect
- Flexible structure design , easy installation , extensible , arbitrary combination

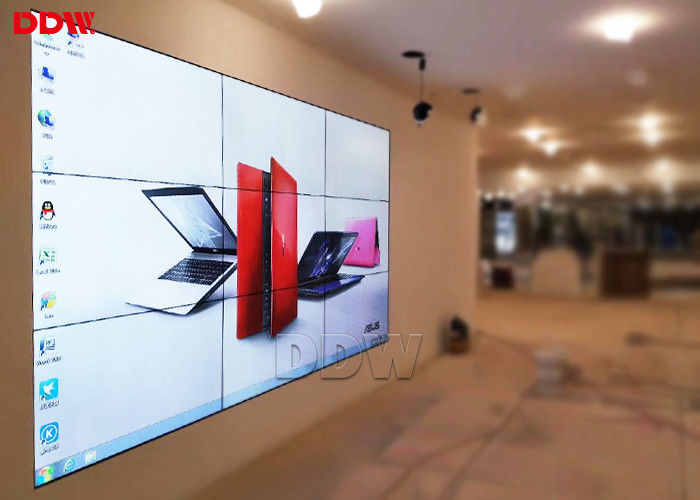

Commercial Video Wall Applications
Commercial Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.
Commercial Video Wall informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: front push hydraulic pop out;
- Dot Pitch: 0.5595 mm x 0.5595 mm; Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
Commercial Video Wall Specifications
| Model No: |
DDW-DV490FHM-NV0 |
| Active Screen Diagonal |
49" |
| TotalBezel Width |
3.5 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500 cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1077.6x607.8x59.67mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
Commercial Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required)
|
FAQ
1. Q: Are you a factory or trading company?
A: We are manufacture for commercial displays system since 2004.
2. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
3. Q: What panel brand you use for LCD video wall?
A: Currently, we mainly use original Samsung or LG panels. And we also use BOE or CHIMEI panels in few cheap models.
4. Q: What is the warranty?
A: The panel default warranty is one year. If you need 3 years warranty, the cost will add 15%~20%.
5. Q: What payment method you accept?
A: We accept TT or west union. And you can pay 30% deposit for production, and 70% balance before shipment.
