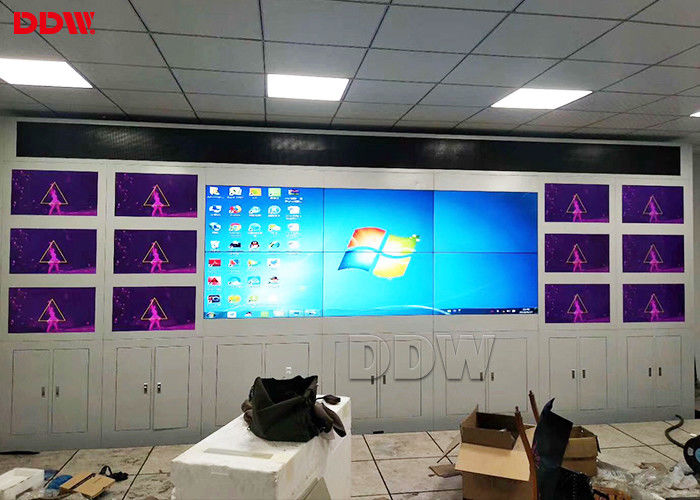

High Brightness Commercial Video Wall Built - In Splicing Module 55"
Commercial Video Wall Introduction
Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Commercial Video Wall Key features:
1. Support a variety of signal ports.
2. Unique DNX motion supplement image processing technology,
3. Dynamic image without motion trail
4. Splicing image processing RS-232 RJ45 loop-circuit input/output.
5. Input by remote control with wire, mobile receiver head.
Commercial Video Wall main parameters
- Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
- 700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,high gamut .
- FHD physical resolution 1920x1080
- Only 3.5 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
Commercial Video Wall Specifications
| Model No: |
DDW-LW550HN12
|
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.63x0.63mm |
| Active Display Area(WxH) |
1209.6 × 680.4 mm
|
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm
|
| Total Bezel Width |
3.5 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
700 cd/sqm |
| Contrast |
5000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
Commercial Video Wall Video Wall Board Specification
| Support |
PC |
color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| DVI |
color |
24bit |
| HDMI |
Line synchronization range |
30-80KHZ |
| DP |
Field synchronization range |
50-75HZ |
| Interface |
input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
Our Services
1. One year warranty for panels. If the panel is defected during warranty, you can enjoy free repair or replacement;
2. We have mature and complete process on tender protection;
3. OEM/ODM service can be offered. Customers' own logo can be printed or showed on the products or packages;
4. 1~2% free spare parts can be provided if the qty over 30pcs;
5. We can offer engineers door-to-door service if needed. But the charge of flight ticket and accomodation shall be paid by the customers.
