Highlight:
multi display video wall
, lcd screen wall

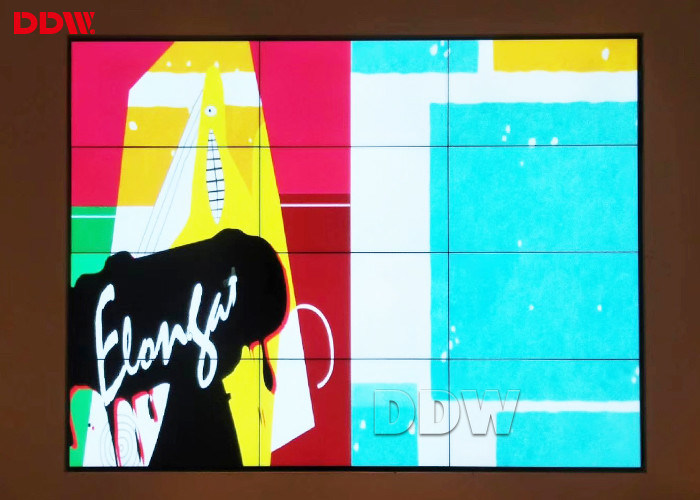

Wall Mounted Multiple Tv Video Wall / Multi Color Frameless Video Wall
Multiple Tv Video Wall Main features:
1. LG industrial panel, support 24 hours continously playing;
2.The gaps between panels is 5.3mm;
3. Full hardware structure, no CPU and operation system;
4. Easy installation, only fixed them together by metal bracket ;
5. Easy operation , can operate the system together with the software flexible,we offer free software;
6. Support RS-232 serial ports remote control;
7. Support multi signal input include BNC, YPbPr,VGA,HDMI,RS232;
8. Images are displayed smoothly and naturally without time delay and tailing, and the image quality are quite smoothy.
9. supporting 10x10 pcs panels splice
Multiple Tv Video Wall parameters
1. Original LG commercial grade lcd video wall display panel
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .
3. FHD physical resolution 1920x1080
4. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. Flexible structure design ---easy installation ,extensible,arbitrary combination
7. Stable performance,suitable working for a long time
Multiple Tv Video Wall features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support Creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
Multiple Tv Video Wall Specifications:
| Surface: |
Anti-glare |
Product Name: |
Multiple Tv Video Wall |
| Color: |
Multi Color |
Resolution: |
1920*1080 |
| Input Voltage: |
AC 220v-250v |
Total Physical Bezel: |
1.8mm |
| Refresh Rate: |
60Hz |
White Point: |
10,000 K |
Multiple Tv Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
