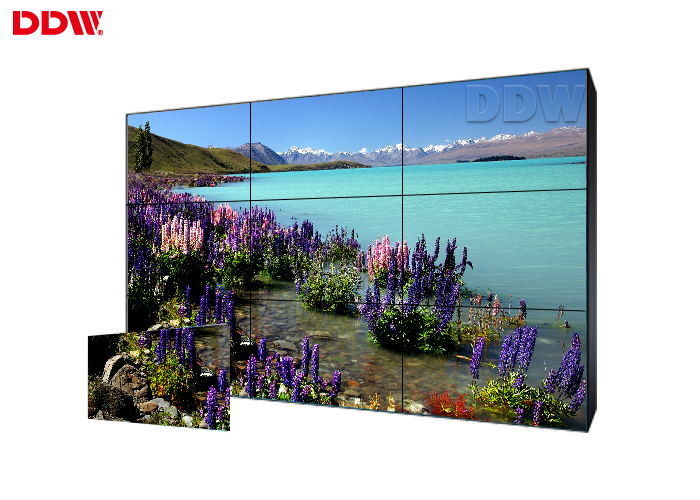

RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design

RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design

    • RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design
  • RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW490DUN-THC1

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Port: RS232 Port Product Name: Commercial Video Wall
    Input Voltage: AC 220v-250v MTBF: > 100,000h
    Control: Wireless Working Temperature: 0°C~50°C
    Total Physical Bezel: 3.5mm Dot Pitch: 0.5593x0.5593mm
    High Light:

    lcd screen wall

    ,

    seamless lcd video wall

    RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design





    Commercial Video Wall Main features:



    1. LG / Samsung industrial panel, support 24 hours continously playing;
    2. The gaps between panels is 5.3mm;
    3. Full hardware structure, no CPU and operation system;
    4. Easy installation, only fixed them together by metal bracket ;
    5. Easy operation , can operate the system together with the software flexible,we offer



    Commercial Video Wall parameters



    1. Original DDW commercial grade lcd video wall display panel,16:9 LG TFT-LCD

    2. 500 nits brightness,MEGA DCR contrast

    3. FHD physical resolution 1920x1080

    4. Only 3.5 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

    5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. FHD video wall unit--- High brightness,high contrast,high gamut .



    Commercial Video Wall Specifications



    Model No: DDW-LW490DUN-THC1 Commercial Video Wall
    Active Screen Diagonal 49''
    Pixel Pitch(WxH)

    0.5593x0.5593 mm

    Active Display Area(WxH)

    1073.8 × 604 mm

    Panel Dimension(WxHxD)
    1077.6x607.8x55.6 mm
    Total Bezel Width 3.5 mm | 0.208”
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 500cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design 0RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design 1RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design 2
