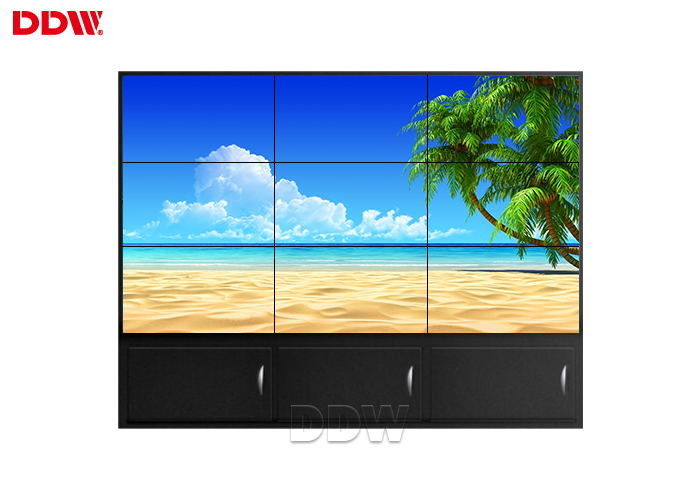

Horizontal Lcd Screen Wall / Multi Touch Multi Screen Display Wall
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Lcd Screen Wall | Type: | Horizontal |
|---|---|---|---|
| Resolution: | 1920*1080 | Input Voltage: | AC 220v-250v |
| Total Physical Bezel: | 1.7mm | Refresh Rate: | 60Hz |
| Touch: | Multi Touch | Dimension: | 1020.02x574.61 Mm |
| Highlight: | lcd screen wall,seamless lcd video wall |
||
Product Description
Horizontal Lcd Screen Wall / Multi Touch Multi Screen Display Wall
Lcd Screen WalFunctions
1. Super Narrow design: the narrowest can reach 3.5mm, and it truly achieves the seamless.
2. Interface type: VGA, DVI connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Support error and compensation function of video wall pictures
View Angle
- 178 degree wide viewing angle, the full range of display;
- Different modules optional: such as heating module, built in camera, air conditioner etc;
HD Panel Display
- HD video wall unit: high brightness, contrast and gamut.
- Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;
Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Panel dimension and interfaces:
- Dimension: 1020.02x574.61 mm;
- Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Total bezel width
- Bezel size: 1.7 mm;
- The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;
Connection topology and applications:
- Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
- Applications: Financial center, real estate center, security room, cinema, theater, etc;
Lcd Screen Wal Specifications:
| Model No: | DDW-LW460HN13 Horizontal Lcd Screen Wall / Multi Touch Multi Screen Display Wall |
| LCD Technology | SAMSUNG LCD |
| Active Screen Diagonal | 46 Inch |
| Total Bezel Width | 1.7 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1020.02x574.61x68.1mm
|
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
