Highlight:
multi display video wall
, seamless lcd video wall

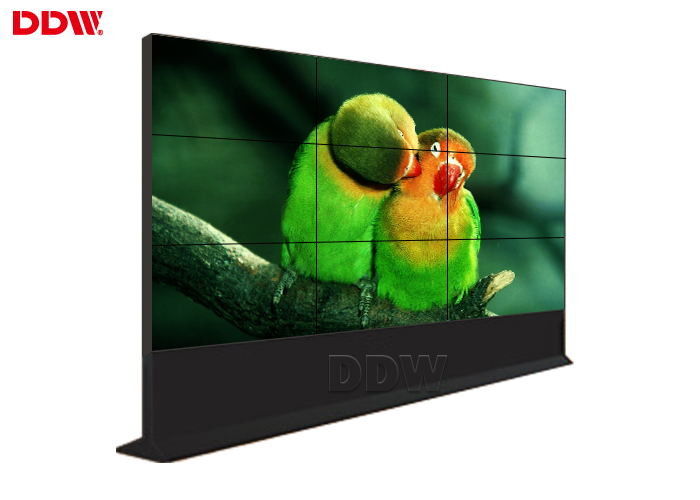

Touch Screen Seamless LCD Video Wall , Monitor Multi Display Video Wall
Seamless LCD Video Wall Application
Conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Seamless LCD Video Wall parameters
1. Original DDW commercial grade lcd video wall display panel
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .
3. FHD physical resolution 1920x1080
4. Stable performance,suitable working for a long time
Seamless LCD Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
Seamless LCD Video Wall Specifications:
| Model No: |
DDW-LW460HN09 Touch Screen Seamless LCD Video Wall , Monitor Multi Display Video Wall |
| LCD Technology |
LG IPS LCD |
| Active Screen Diagonal |
46" |
| Total Bezel Width |
5.3 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500 cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1023.98x578.57x79.5mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
Commercial Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
