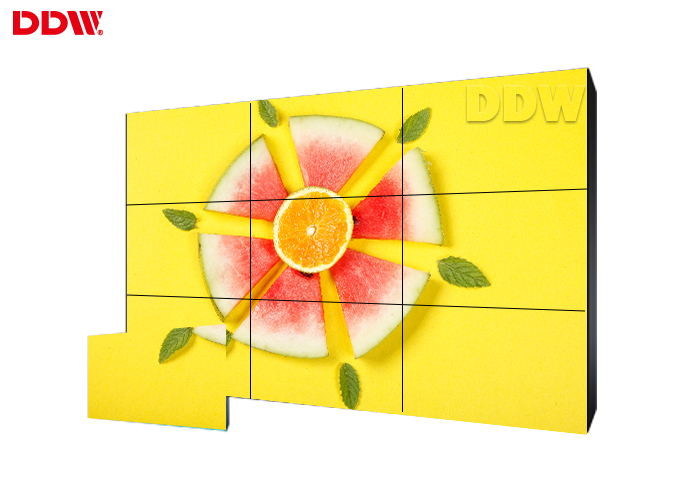

Rich Color 46 Video Wall Display , Wall Mounted Seamless LCD Video Wall
Rich Color 46 Video Wall Display , Wall Mounted Seamless LCD Video Wall
Rich Color 46 Video Wall Display , Wall Mounted Seamless LCD Video Wall

Rich Color 46 Video Wall Display , Wall Mounted Seamless LCD Video Wall

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN13

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

lcd screen wall

,

seamless lcd video wall

Product Name:
Seamless LCD Video Wall
Color:
Rich Color
Cooling:
Low Noise Fans
Bezel Size:
1.7 Mm
Panel Size:
46 Video Wall Display
Dot Pitch:
0.5302x0.5302 Mm
Product Name:
Seamless LCD Video Wall
Color:
Rich Color
Cooling:
Low Noise Fans
Bezel Size:
1.7 Mm
Panel Size:
46 Video Wall Display
Dot Pitch:
0.5302x0.5302 Mm
Product Description

Rich Color 46 Video Wall Display , Wall Mounted Seamless LCD Video Wall





46 Video Wall Display features:

  •  Panel size: 46 Inch
  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  Interfaces: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output;
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile  phone shop, restaurant;



Narrow Bezel:

  •  46 inch LCD video wall narrow bezel available: 1.7 mm, 3.5 mm, 5.3 mm;
  •  3×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;



View Angle

  •  178 degree wide viewing angle, the full range of display;
  •  Different modules optional: such as heating module, built in camera, air conditioner etc;



HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;



Functions:

  •  Supporting 225 units (15×15) multi-matrix;
  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.



Panel dimension and interfaces:

  •  Dimension: 1020.02x574.61x68.1mm;
  •  Interface: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output



Total bezel width

  •  Bezel size:1.7 mm;
  •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;



46 Video Wall Display Parameters



Panel Size 46 Video Wall Display
Total bezel width 1.7 mm
Active Display Area

1020.02x574.61x68.1mm
Resolution 1920 x 1080; 3840 x 2160
Brightness 700 nits
Contrast ratio 4000:01:00
Responsive time 6ms
Warranty 1 year



46 Video Wall Display Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

 Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD

Chinese, English and other languages (other languages can be added as required)





Our Services



1. One year warranty for panels. If the panel is defected during warranty, you can enjoy free repair or replacement;

2. We have mature and complete process on tender protection;

3. OEM/ODM service can be offered. Customers' own logo can be printed or showed on the products or packages;

4. 1~2% free spare parts can be provided if the qty over 30pcs;

5. We can offer engineers door-to-door service if needed. But the charge of flight ticket and accomodation shall be paid by the customers.
