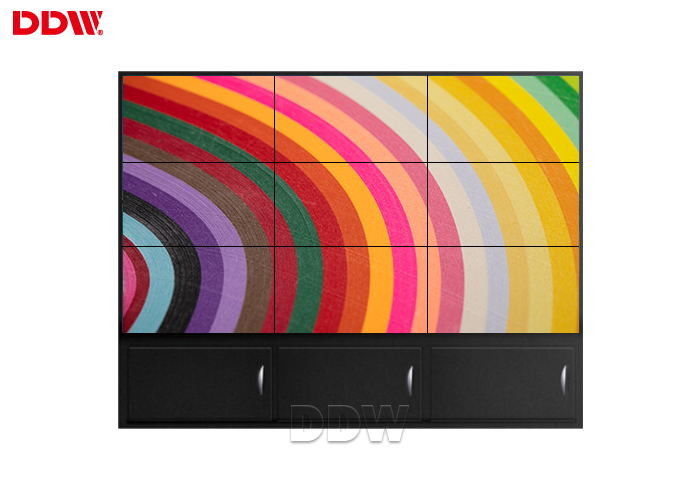

Original LG Panel Commercial Video Wall 500 Nits Ultra High Brightness
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV490FHM-NV0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Panel: | Original LG Panel | Bezel Width: | 3.5 Mm |
|---|---|---|---|
| Surface: | Anti-glare | Brightness: | 500 Nits Brightness |
| Product Name: | Commercial Video Wall | Feature: | Ultra High Brightness |
| Panel Width: | 1077.6 Mm | Panel Height: | 607.8 Mm |
| Highlight: | multi display video wall,seamless lcd video wall |
||
Product Description
Original LG Panel Commercial Video Wall 500 Nits Brightness High Brightness
Commercial Video Wallfunctions
- Support showing logo, date/time/week, weather report and instant subtitles
- User-defined screen model, flexible layout, split screen and full screen optional
- Program preview, multi-level auditing, security checks at each level to convey accurate information.
- Terminal group management, multi-users flexible authorization.
- Terminal remote monitoring, real-time view to status , provide various of business reporting and management reporting.
- Powerful system health monitoring. fault warning, error message timely tips are allowed.
- Remote terminal system upgrade, intelligent DNS, convenient and easy to operate and maintain.
- Support WAN, LAN, VPN / WiFi / 3G network publishing, cross-regional, inter-provincial city, Easy Networking to multi-network
Commercial Video Wall Applications
This 49 inch Commercial Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.
Commercial Video Wall Specifications
| Model No: | DDW-DV490FHM-NV0 Original LG Panel Commercial Video Wall 500 Nits Brightness High Brightness |
| Active Screen Diagonal | 49" |
| TotalBezel Width | 3.5 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1077.6x607.8x59.67mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
Commercial Video Wall LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out |
