| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THA3 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Design: | Narrow | Bezel Width: | 1.8 Mm |
|---|---|---|---|
| Product Name: | Frameless Video Wall | Backlight: | LED |
| Type: | Lcd Video Wall Display | Aspect Ratio: | 16:9 |
| Working Humidity: | 0.85 | Control: | Remote Control |
| High Light: | lcd screen wall,seamless lcd video wall |
||

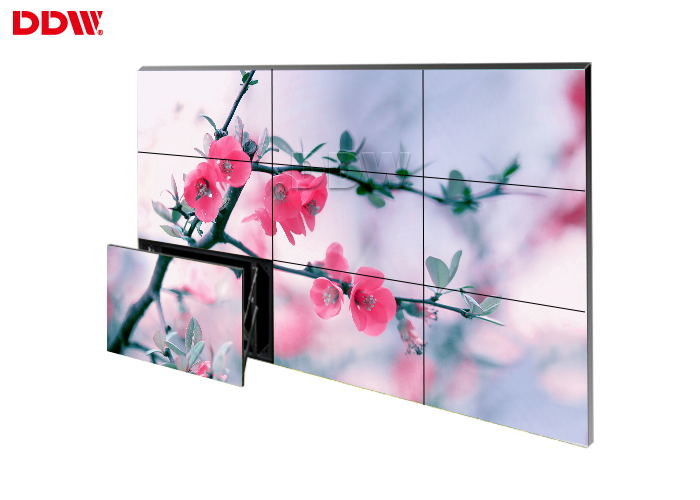

Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control
Frameless Video Wall Main features:
1. Samsung industrial panel, support 24 hours continously playing;
2. The gaps between panels is 5.3mm;
3. Full hardware structure, no CPU and operation system;
4. Easy installation, only fixed them together by metal bracket ;
5. Easy operation , can operate the system together with the software flexible,we offer free software;
6. Support RS-232 serial ports remote control;
7. Support multi signal input include BNC, YPbPr,VGA,HDMI,RS232;
8. Images are displayed smoothly and naturally without time delay and tailing, and the image quality are quite smoothy.
9. supporting 10x10 pcs panels splice
10. Support 1920*1080
11. Use life is over 50000 hours;
Frameless Video Wall Specifications:
| Model No: | DDW-LW550DUN-THA3 Frameless Video Wall |
| LCD Technology | LG IPS LCD |
| Active Screen Diagonal | 55 inch |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6×680.4mm |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Frameless Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
