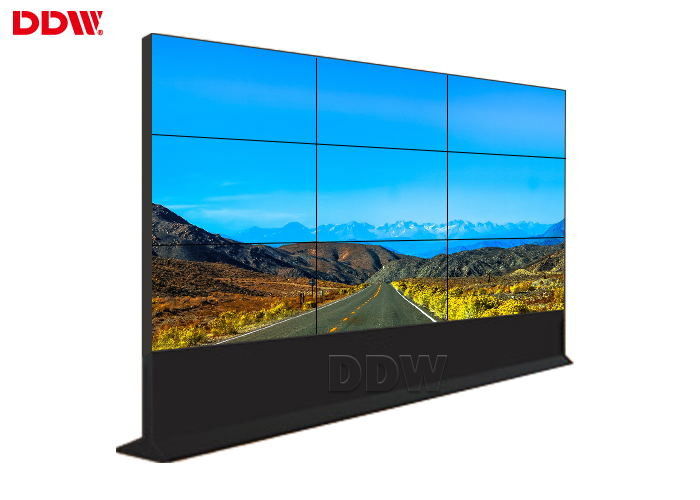

Floor Standing Commercial Video Wall Dispaly Support Matrix Joint Control

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN12

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                lcd screen wall, seamless lcd video wall


Product Name:	Commercial Video Wall Dispaly	Backlight:	LED
Response Time:	<=6ms	Control:	Support Matrix Joint Control
Power Supply:	AC100~240V 50/60 HZ	Type:	Floor Standing
Aspect Ratio:	16:9	Storage Humidity:	85% Non-condensing

Product Name:	Commercial Video Wall Dispaly
Backlight:	LED
Response Time:	<=6ms
Control:	Support Matrix Joint Control
Power Supply:	AC100~240V 50/60 HZ
Type:	Floor Standing
Aspect Ratio:	16:9
Storage Humidity:	85% Non-condensing

Product Description

Floor Standing Commercial Video Wall Dispaly Support Matrix Joint Control

Commercial Video Wall Dispaly Functions

1. Ultra Narrow design: the narrowest can reach 3.5mm, and it truly achieves the seamless.
2. Interface type: VGA, DVI connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)

Commercial Video Wall Dispaly parameters

700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,high gamut .
FHD physical resolution 1920x1080
Only 3.5 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time

Commercial Video Wall Dispaly Specifications

Model No:	DDW-LW550HN12 Floor Standing Commercial Video Wall Dispaly Support Matrix Joint Control
Active Screen Diagonal	55"
Pixel Pitch(WxH)	0.63x0.63mm
Active Display Area(WxH)	1209.6 × 680.4 mm
Backlight System	LED
Luminance(nits)	700 cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing

Commercial Video Wall Video Wall Board Specification

Support	PC	color	24bit
signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI	color	24bit
	HDMI	Line synchronization range	30-80KHZ
	DP	Field synchronization range	50-75HZ
Interface	input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	output	PANEL	LVDS 36Pin/2.0
	output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)

Floor Standing Commercial Video Wall Dispaly Support Matrix Joint Control 0

Floor Standing Commercial Video Wall Dispaly Support Matrix Joint Control 1
