SHENZHEN DDW TECHNOLOGY CO.,LTD Company Profile
products
Home > products > LCD Video Wall > Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz

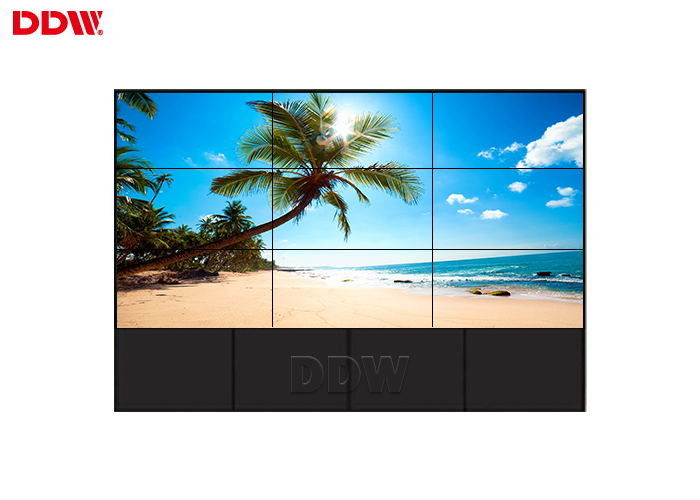

Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz
Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz
Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz

Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550DUN-THB5

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

multi display video wall

,

lcd screen wall

Product Name:
Seamless Video Wall Displays
Size:
55 Video Wall Display
Backlight:
LED
Resolution:
1920*1080p
Input Voltage:
220v-250v
Total Physical Bezel:
1.8mm
Refresh Rate:
60Hz
White Point:
10,000 K
Product Name:
Seamless Video Wall Displays
Size:
55 Video Wall Display
Backlight:
LED
Resolution:
1920*1080p
Input Voltage:
220v-250v
Total Physical Bezel:
1.8mm
Refresh Rate:
60Hz
White Point:
10,000 K
Product Description

Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz





55 Video Wall Display Main Features:

  • Imported LG brand full new A+ grade 1920*1080P HD display
  • IR touch screen version and non-touch screen version for option
  • Stand-alone version/Windows/Android system version for option
  • Intelligent split screen, support multiple split screen modes, video images are free to put
  • Image carousel, video carousel
  • Remote Ads publish
  • Multimedia information release system

55 Video Wall Display parameters



1. Original commercial grade lcd video wall display panel

2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

3. FHD physical resolution 1920x1080

4. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output



55 Video Wall Display Specifications:



Model No: DDW-LW550DUN-THB5 Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz
Active Screen Diagonal 55"
Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1211.4x682.2x53.3mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Commercial Video Wall ​Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

 Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz 0Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz 1Modular 55 Video Wall Display / Seamless Video Wall Displays 60Hz 2



Tags:

video display walls,

narrow bezel video wall,

hd video wall
