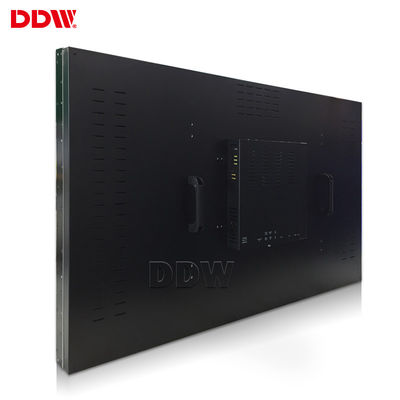

Curved lcd screen Portable video wall 46 Inch indoor display HDMI , DVI , VGA signal interface
46 inch Curved Video Wall Main parameters
1, Original DDW commercial grade lcd video wall display panel , 16:9 LG a-Si TFT-LCD
2, 500nits brightness , MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 5.3 mm ultra narrow bezel , high quality , practical , good vision effect
5, Signal interface rich , RS232 , HDMI , DVI , VGA , Y Pb Pr , AV
6, HD video wall unit , high brightness , high contrast , high gamut
7, Flexible structure design , easy installation , extensible , arbitrary combination
8, Stable performance , suitable working for a long time
Curved Video Wall Key features
Support a variety of signal ports
Built-in splicing module, support splice function
Support Creating one window PIP across the screen , roaming service , scaling , PIP
Support matrix joint control
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Curved Video Wall Introduction
46" DDW curved video wall is one of the most popular lcd video wall panels which has 5.3mm ultra narrow bezel,HD 1920x1080 resolution,and 450nits brightness,it's one of first Samsung general videowall panels in the world.
Application

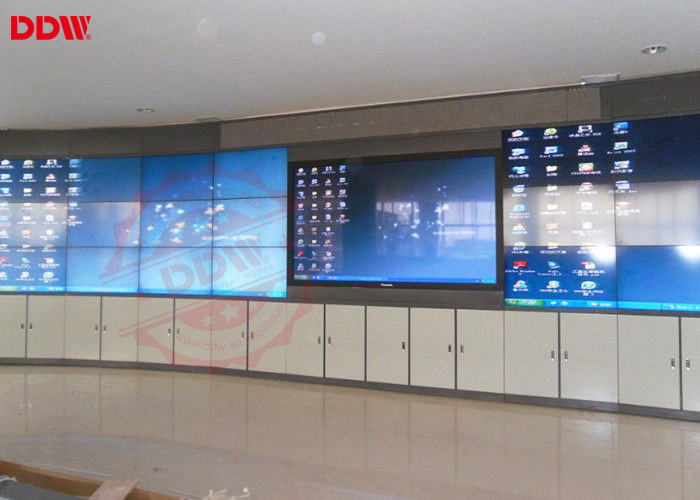

Samsung lcd video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
Curved Video Wall Specifications
| Active Screen Diagonal |
46" |
| Bezel Width |
Total: 5.3 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5302x0.5302mm
|
| Active Display Area(WxH) |
1018.08×572.67mm
|
| Panel Dimension(WxHxD) |
1023.98x578.57x79.5mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
Curved Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
