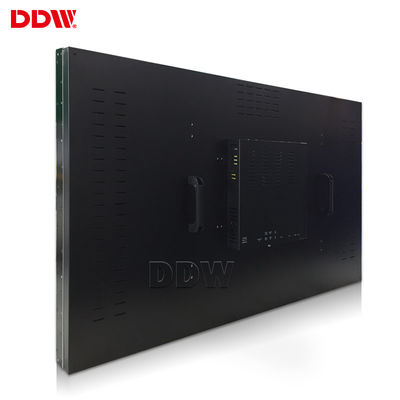

LW550HN16 Wall Mounted Curved Video Wall Ultra Narrow Bezel LG Screens RS232 Control

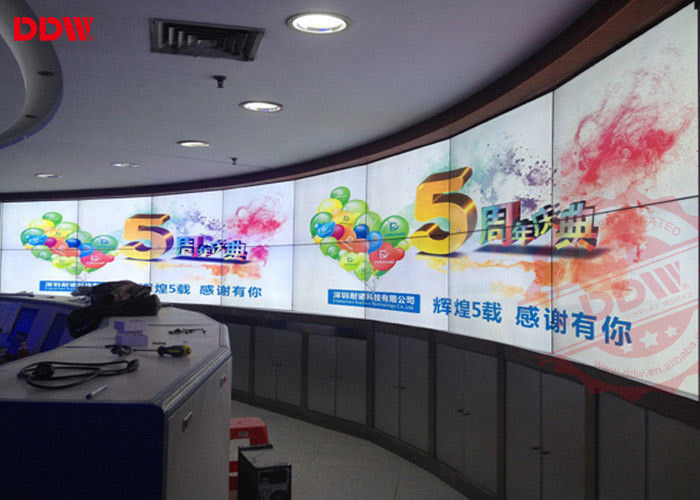

Curved Video Wall Application
Commercial Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Curved Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
55 inch Curved Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 1.7 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,high gamut .
7. Flexible structure design ---easy installation ,extensible,arbitrary combination
8. Stable performance,suitable working for a long time
Curved Video Wall Specifications
| Model No: |
DDW-LW550HN16 |
| LCD Technology |
SAMSUNG LCD |
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.63x0.63 mm
|
| Active Display Area(WxH) |
1209.6 × 680.4 mm
|
| Panel Dimension(WxHxD) |
1211.54 x 682.34x68.1mm
|
| Total Bezel Width |
1.7 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
5000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
Commercial Video Wall Board Specification
| Support |
PC |
color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| DVI |
color |
24bit |
| HDMI |
Line synchronization range |
30-80KHZ |
| DP |
Field synchronization range |
50-75HZ |
| Interface |
input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
