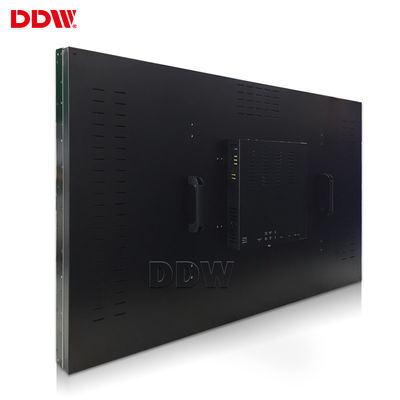

1.8 Mm Curved Video Wall 55 Inch Anti Glare 1920x1080 With Low Noise Fans
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Bezel Width: | 1.8 Mm | Product Name: | Curved Video Wall |
|---|---|---|---|
| Backlight: | LED | Color: | 8Bit , 16M |
| Aspect Ratio: | 16:9 | Working Humidity: | 0.85 |
| Cooling: | Low Noise Fans | MTBF: | > 100,000 H |
| Highlight: | curved lcd video wall,curved display wall |
||
Product Description
1.8 mm LW550DUN-THA3 Curved Video Wall 55 inch width 1211.4mm 1920x1080

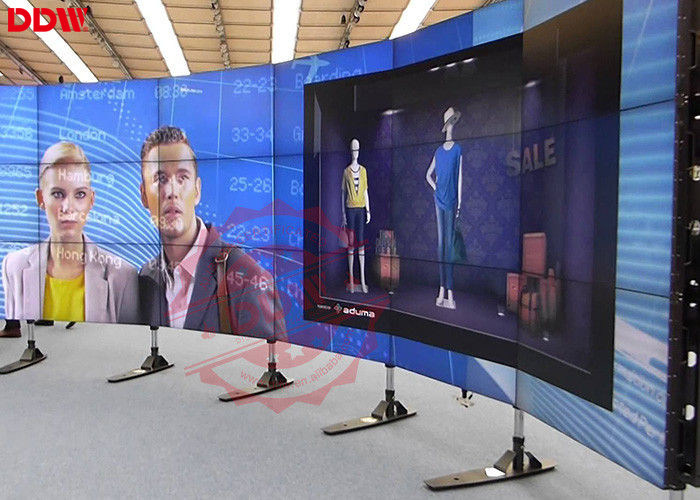

Curved Video Wall Application
Advertising video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Curved Video Wall basic informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing cabinets;
- Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
Curved Video Wall key features:
- Panel size: 46″, 49″, 55″, 60″ optional.
- Ultra narrow frame design, the narrowest bezel is 1.8 mm and the bezel can be optional.
- Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
- The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
- Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
- Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
- Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
Curved Video Wall Specifications:
| Model No: | DDW-LW550DUN-THA3 |
| LCD Technology | LG IPS LCD |
| Active Screen Diagonal | 55'' |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6×680.4mm |
| Panel Dimension(WxHxD) |
1211.4x682.2x53.3 mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Curved Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
