55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Curved Video Wall | Backlight: | LED |
|---|---|---|---|
| Resolution: | 1920x1080 | Input Voltage: | AC 220v-250v |
| Total Physical Bezel: | 1.7mm | Refresh Rate: | 60Hz |
| Panel Width: | 1211.54 Mm | Panel Height: | 682.34 Mm |
| Highlight: | curved lcd video wall,curved display wall |
||
Product Description
LW550HN16 55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v
Narrow Bezel:
- 55 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
- Interactive Video Wall show commercial advertisement, food picture, video play, product picture;
View Angle
- 178 degree wide viewing angle, the full range of display;
- Different modules optional: such as heating module, built in camera, air conditioner etc;
HD Panel Display
- HD video wall unit: high brightness, contrast and gamut.
- Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 500cd/m2;
Curved Video Wall Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Panel dimension and interfaces:
- Dimension: 1211.54 x 682.34 mm;
- Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Total bezel width
- Bezel size: 1.7 mm;
- The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;
Connection topology and applications:
- Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;

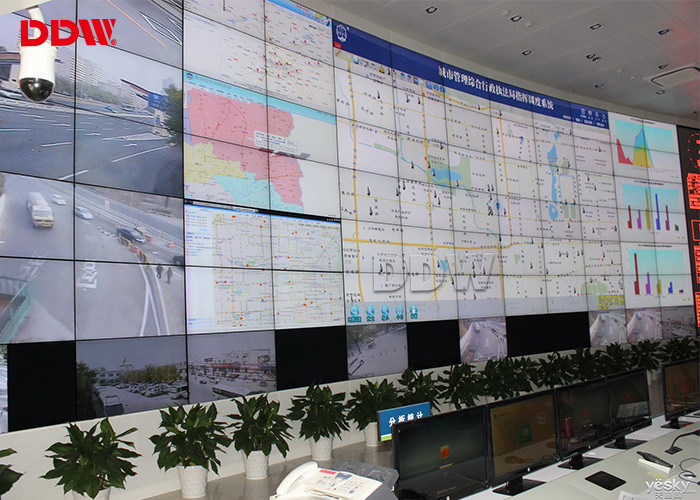

- Applications: Financial center, real estate center, security room, cinema, theater, etc;
Curved Video Wall Specifications:
| Model No: | DDW-LW550HN16 |
| LCD Technology | SAMSUNG IPS LCD |
| Active Screen Diagonal | 55" |
| Total Bezel Width | 1.7 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) | 1211.54×682.34x68.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Curved Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
