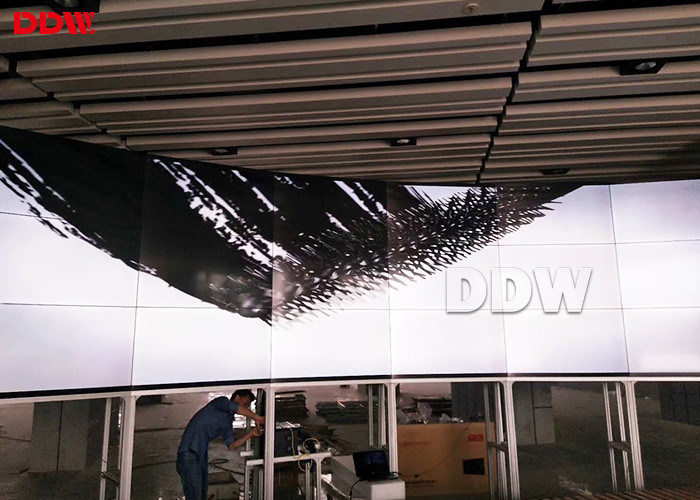

High Resolution Curved Video Wall For Radio And Television 700 Nits
Curved Video Wall Key features:
- Support Creating one window PIP across the screen, roaming service, scaling,PIP
- Support matrix joint control.
- Unique DNX motion supplement image processing technology,
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.
55 inch Curved Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 700 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 1.7 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,high gamut .
7. Flexible structure design ---easy installation ,extensible,arbitrary combination
8. Stable performance,suitable working for a long time
Curved Video Wall Application
Advertising Curved Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Curved Video Wall Specifications:
| Panel Size: |
55 Inch |
Bezel Width: |
1.7 Mm |
| Surface: |
Anti-glare |
Brightness: |
700 Nits |
| Product Name: |
Curved Video Wall |
Panel Brand: |
Samsung |
| Advantage: |
High Resolution |
Refresh Rate: |
60Hz |
Curved Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
