| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV46FHM-NV0 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | CCTV Video Wall | Application: | Indoor |
|---|---|---|---|
| Viewing Angle: | 178x178 | Color: | 8Bit,16.7M |
| Daisy Chain: | RJ45 Loop | Input Voltage: | 230W |
| Control Method: | RS232 Control | Surface: | Anti-glare |
| High Light: | conference room video wall,broadcast video wall |
||

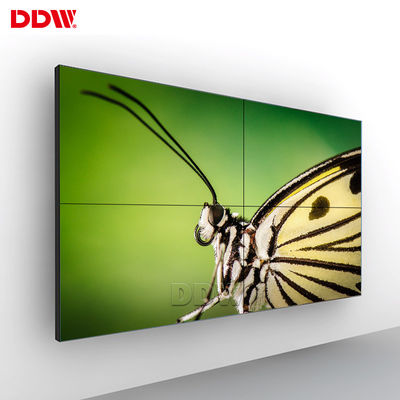

DV46FHM-NV0 46 Inch Hd LCD Advertising Digital Signage Video Wall 1920x1080
CCTV Video Wall Specifications
LCD Interactive Video Wall
- 46", 3.5 mm Ultra narrow bezel
- 1920x1080 resolution
- LED backlight 500nits brightnes
- 100% New Samsung screen
Origianl Samsung DID panel
3.5 mm ultra narrow bezel lcd video wall screen
The world first &Best seller lcd video wall screen!!
Most cost-effective lcd video wall solution screen in the world
Model No.: DDW-DV46FHM-NV0
46" CCTV Video Wall features:
1, Original DDW Industrial grade lcd video wall solution screen,16:9 LG a-Si TFT-LCD
2, 500nits brightness,4000:1 contrast.HD lcd video wall unit--- High brightness,high contrast,high gamut .
3, HD physical resolution 1920x1080
4, Only 3.5mm ultra narrow bezel.high quality ,practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, Flexible structure design ---easy installation ,extensible,arbitrary combination
7, Stable performance,suitable working for a long time
46" lcd video wall is one of the most popular lcd video wall panels which has 3.5mm ultra narrow bezel,FHD1920x1080 resolution,and 500nits brightness,it's one of first Samsung general videowall panels in the world.
Application

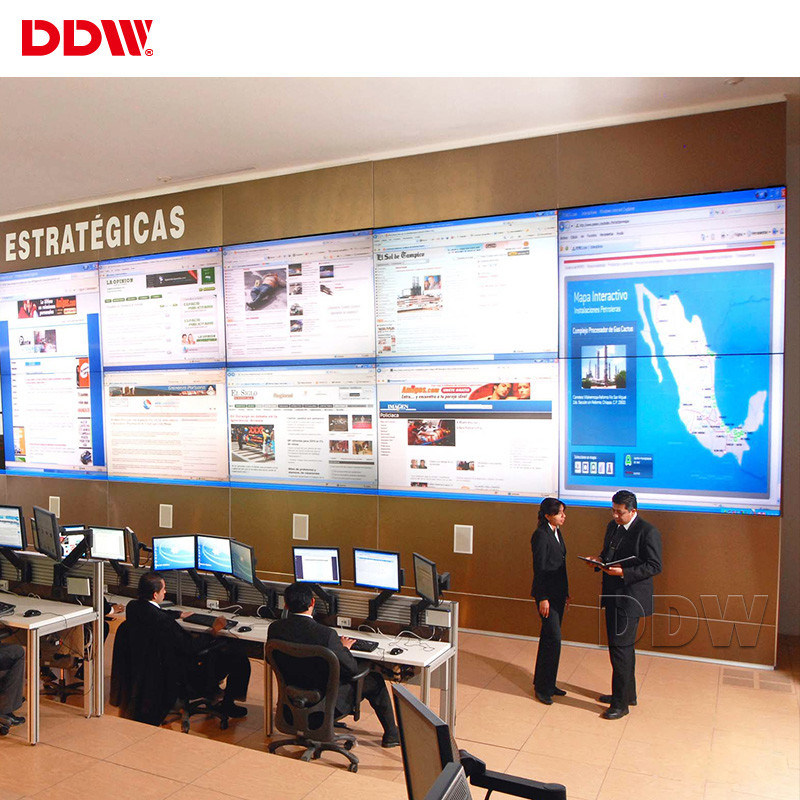

Samsung lcd video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
Specifications
| LCD Video wall Panel Specifications | |
| LCD Technology | SAMSUNG DID LCD |
| Active Screen Diagonal | 46" 16:9 |
| Bezel Width | Total: 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.53025×0.53025 mm |
| Active Display Area(WxH) |
1018.08×572.67mm |
| Panel Dimension(WxHxD) |
1213.5x684.3x59mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
CCTV Video Wall Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
