RS232 Control Monitor Video Wall , Thin Bezel LCD Video Wall Display
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THB5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Monitor Video Wall | Bezel: | Thin Bezel |
|---|---|---|---|
| Control Method: | RS232 Control | Total Physical Bezel: | 1.8 Mm |
| Resolution: | 1920*1080 | Backlit Type: | LED |
| Panel Width: | 1211.4mm | Other Name: | LCD Video Wall Display |

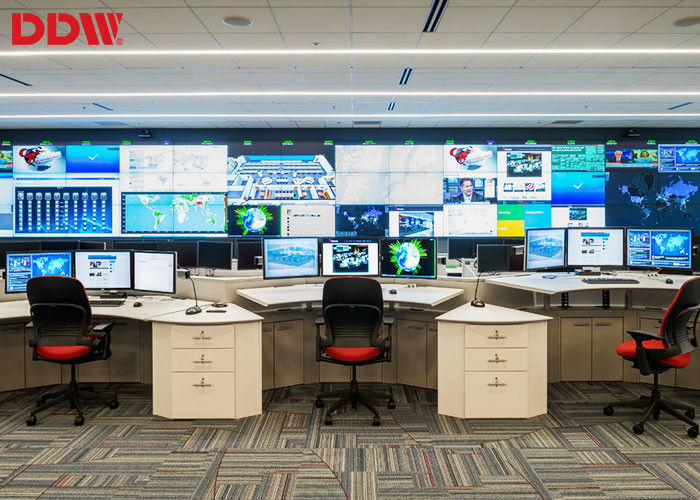

| Highlight: | conference room video wall,control room displays |
||
Product Description
RS232 Control Monitor Video Wall , Thin Bezel LCD Video Wall Display
LED direct-lit backlight with uniform brightness and no boundary shadow.
High display resolution, and delicate image with rich color;
High definition, high brightness, high color gamut
LCD screen with wide angle.
Large display area with light weight
Longer display lifespan
Multiple jointing methods, applicable for various scenes.
Stable running and low maintenance cost, support 24 hours continuous wokring.
Metal case enhances the function of anti-radiation, anti-magnetic filed and strong electric field interference.
Working humidity: 10% ~ 90%, able to work under harsh envionment.
Monitor Video Wall informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing cabinets;
- Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Monitor Video Wall Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Monitor Video Wall Specifications
| Active Screen Diagonal | 55 Inch |
| Panel Dimension(WxHxD) |
1211.4x682.2x53.3mm |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) |
500cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
CCTV Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
