Highlight:
conference room video wall
, control room displays

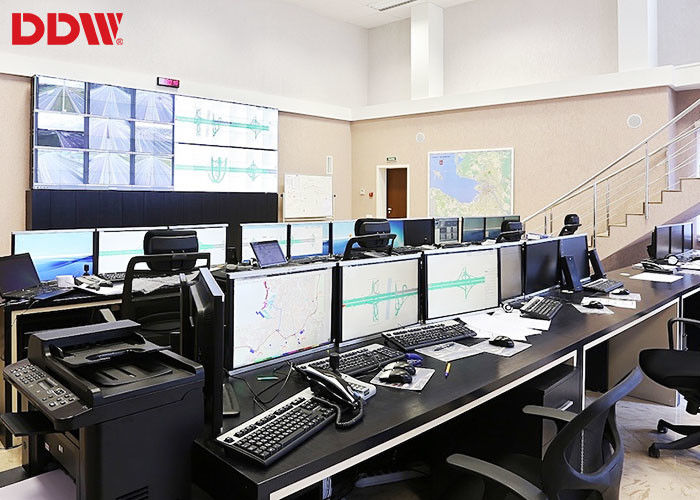

Seamless Control Room Video Wall / Multi Screen 55 Video Wall Display
Control Room Video Wall Application
Control Room Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Control Room Video Wall features
Support a variety of signal ports.
Built-in splicing module, Support splice function
Support creating one window PIP across the screen, roaming service, scaling,PIP
Splicing image processing RS-232 RJ45 loop-circuit input/output.
Input by remote control with wire, mobile receiver head.
Control Room Video Wall parameters
1, Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2, 500nits brightness,MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.
Control Room Video Wall Specifications:
| LCD Technology |
SAMSUNG LCD |
| Active Screen Diagonal |
55'' |
| Bezel Width |
Total: 1.8mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500 cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1211.4x682.2x53.3mm
|
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
