High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium
High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium
High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium

High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW490DUN-TJB1

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

broadcast video wall

,

control room displays

Panel Size:
49 Inch
Bezel Width:
1.8 Mm
Feature:
High Contrast
Product Name:
CCTV Video Wall
Panel Brand:
LG
Panel Width:
1075.38 Mm
Panel Height:
605.8 Mm
Application:
Exhibition , Stadium And Gymnasium
Panel Size:
49 Inch
Bezel Width:
1.8 Mm
Feature:
High Contrast
Product Name:
CCTV Video Wall
Panel Brand:
LG
Panel Width:
1075.38 Mm
Panel Height:
605.8 Mm
Application:
Exhibition , Stadium And Gymnasium
Product Description

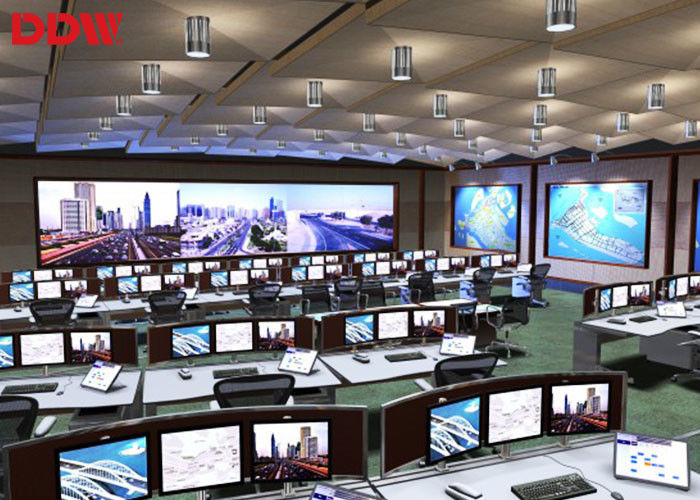

High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium



CCTV Video Wall​ Key features:

  •  Support creating one window PIP across the screen, roaming service, scaling,PIP
  •  Support matrix joint control.
  •  Unique DNX motion supplement image processing technology,
  •  Dynamic image without motion trail
  •  Splicing image processing RS-232 RJ45 loop-circuit input/output.
  •  Input by remote control with wire, mobile receiver head.

CCTV Video Wall parameters



1. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.

2. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

3. HD video wall unit--- High brightness,high contrast,high gamut .

4. Flexible structure design ---easy installation ,extensible,arbitrary combination

5. Stable performance,suitable working for a long time



CCTV Video Wall Specifications:



Model No: DDW-LW490DUN-TJB1
LCD Technology LG IPS LCD
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.5593x0.5593mm
Active Display Area(WxH)

1073.8 × 604 mm
Panel Dimension(WxHxD)

1075.38 x 605.8x53.6mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



CCTV Video Wall ​Board Specifications



Support PC Color 24bit
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium 0
