Highlight:
conference room video wall
, broadcast video wall

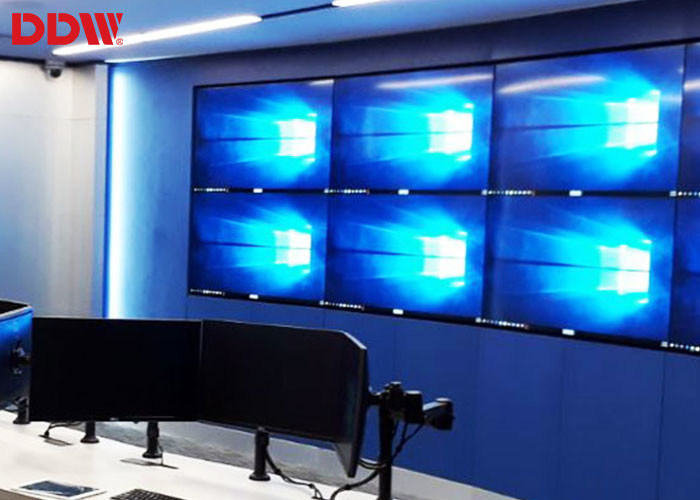

Flexible 3x3 Video Wall TV Screens , Rich Color Video Wall Lcd Monitors
Video Wall TV Screens features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
Video Wall TV Screens parameters
1. Original DDW commercial grade lcd video wall display panel,16:9 Samsung a-Si TFT-LCD
2. 700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,High gamut.
3. FHD physical resolution 1920x1080
4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Video Wall TV Screens Specifications
| Model No: |
DDW-LW550HN12 Video Wall TV Screens |
| LCD Technology |
Samsung a-Si TFT-LCD |
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.630x0.630mm |
| Active Display Area(WxH) |
1209.6x680.4mm |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
| Total Bezel Width |
3.5mm | 0.208” |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
700cd/sqm |
| Contrast |
5000:1 (typ.) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
Video Wall TV Screens Details
