Highlight:
conference room video wall
, control room displays
High Resolution CCTV Video Wall For Airport , Station HD 1920x1080P
CCTV Video Wall Specifications
- 1920x1080 resolution
- LED backlight 500nits brightnes
- 100% New Samsung screen
The world first & best seller lcd video wall screen!!
Most cost-effective lcd video wall solution screen in the world
CCTV Video Wall features:
1, Original DDW Industrial grade Samsung lcd video wall solution screen, 16:9 LG a-Si TFT-LCD
2, 500nits brightness,4000:1 contrast
3, HD physical resolution 1920x1080
4, Only 3.5 mm ultra narrow bezel.high quality ,practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, HD lcd video wall unit--- High brightness,high contrast,high gamut .

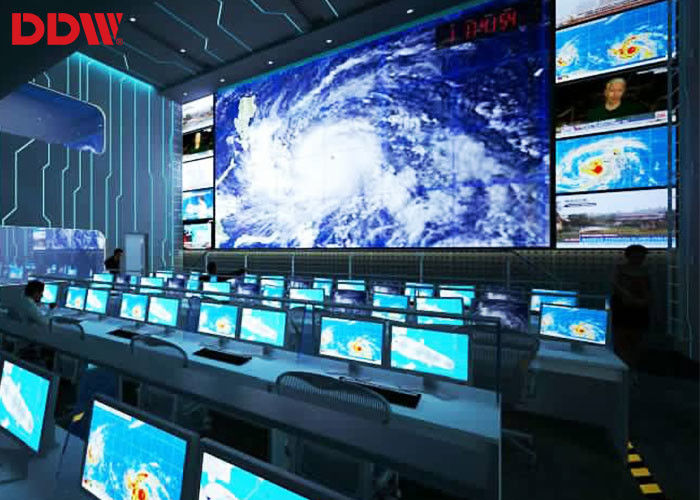

CCTV Video Wall Application
CCTV Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
CCTV Video Wall Specifications
| Active Screen Diagonal |
46" 16:9 |
| Bezel Width |
Total: 3.5mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1213.5x684.3x59mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
CCTV Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
