| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THB5 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Name: | LCD Video Wall Display | Feature: | Lightweight |
|---|---|---|---|
| Backlight: | LED | Panel: | LG Panel |
| Input Voltage: | AC 220v-250v | Total Physical Bezel: | 1.8 Mm |
| Refresh Rate: | 60Hz | White Point: | 10,000 K |
| High Light: | ultra narrow bezel video wall,video wall lcd screens |
||

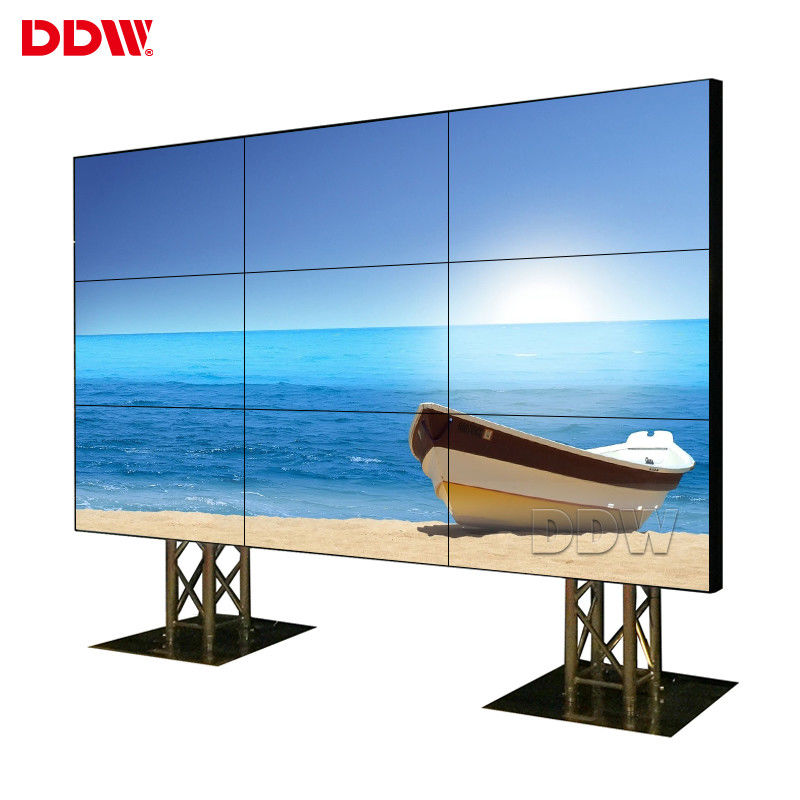

Lightweight LCD Video Wall Display With Original LG Panel Easy To Handle
LCD Video Wall Display Key features:
1. Built-in splicing module, Support splice function
2. Support Creating one window PIP across the screen, roaming service, scaling,PIP
3. Unique DNX motion supplement image processing technology,
4. Dynamic image without motion trail
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.

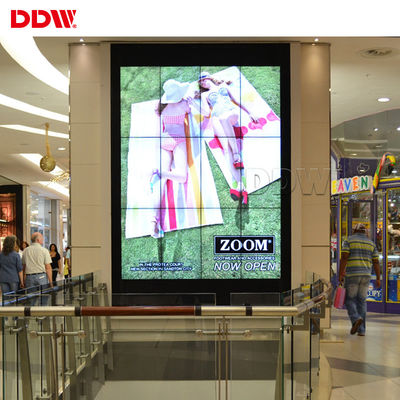

LCD Video Wall Display Application area
Shopping mall, Airport, Plice office, Railway station.
All the places where require high display advertisement or surveillance monitoring.
LCD Video Wall Display Specifications:
| Model No: | DDW-LW550DUN-THB5 LCD Video Wall Display |
| Active Screen Diagonal | 55 Inch |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1211.4x682.2x53.3mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
LCD Video Wall Display Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |

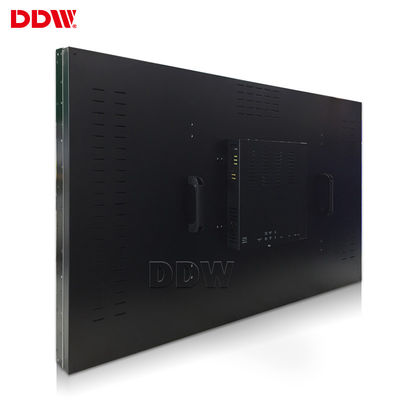

LCD Video Wall Display Details
