Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW460HN12 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Product Name: | 46 LCD Video Wall Display | Response Time: | <=6ms |
---|---|---|---|
Display Colors: | 8Bit,16.7M | Panel Height: | 576.57mm |
Active Area: | 1018.08×572.67mm | Total Physical Bezel: | 3.5mm |
Surface: | Anti-glare | Refresh Rate: | 60Hz |
High Light: | ultra narrow bezel video wall,multi screen video wall |

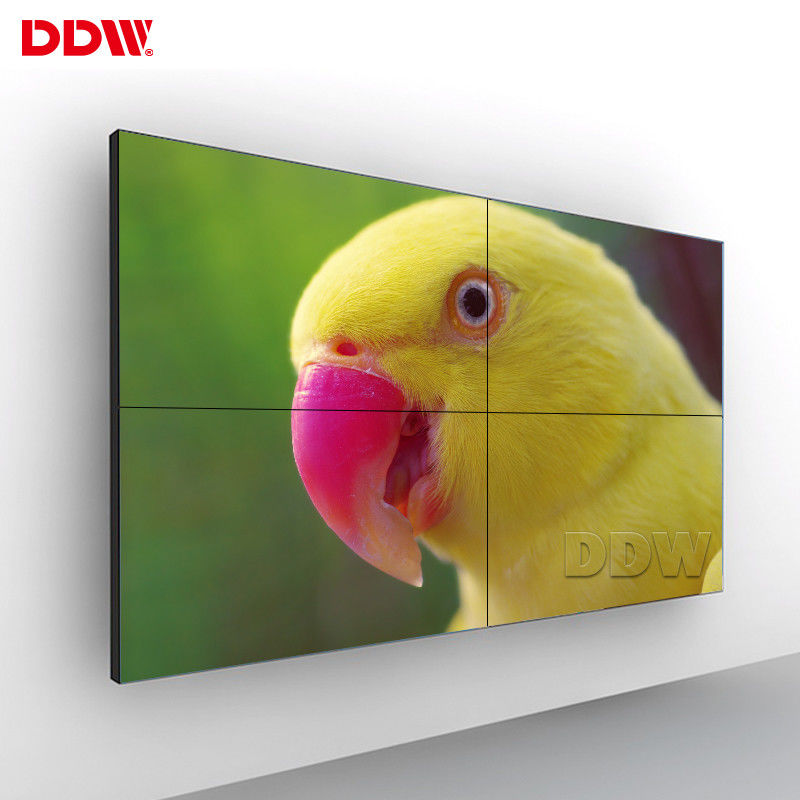

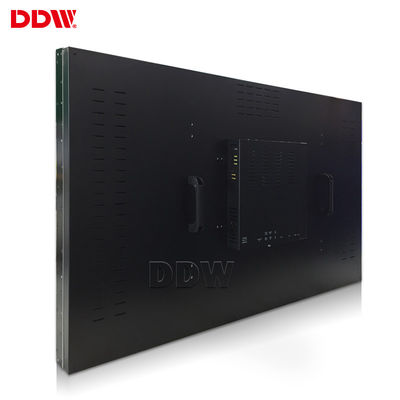

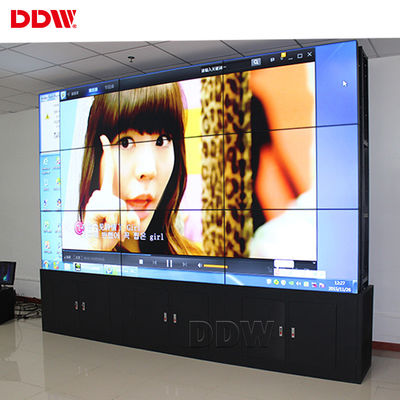

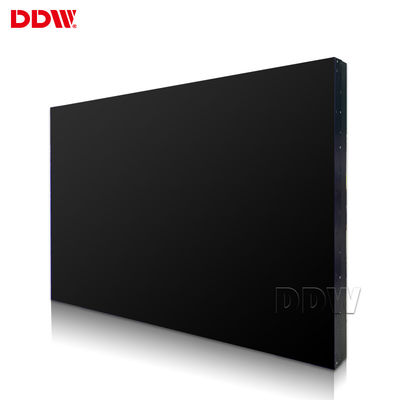

Flexible Structure 46 LCD Video Wall Display With Ultra Narrow Bezel 3.5mm
46 LCD Video Wall Display Introduction
1 Support creating one window PIP across the screen, roaming service, scaling,PIP
2 Support matrix joint control.
3 Unique DNX motion supplement image processing technology,
4 Dynamic image without motion trail
5 Splicing image processing RS-232 RJ45 loop-circuit input/output.
46 LCD Video Wall Display parameters
46 LCD Video Wall Display Application areas:
real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
46 LCD Video Wall Display Specifications
Model No: |
DDW-LW460HN12 46 LCD Video Wall Display |
LCD Technology | Samsung a-Si TFT-LCD |
Active Screen Diagonal | 46 Inch |
Pixel Pitch(WxH) |
0.5302x0.5302mm |
Active Display Area(WxH) |
1018.08×572.67mm |
Panel Dimension(WxHxD) |
1021.98x576.57x66.9mm |
Total Bezel Width | 3.5 mm | 0.208” |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backlight System | LED |
Luminance(nits) | 700 cd/sqm |
Contrast | 5000:1 (typ.) |
Viewing Angle | H 178°|V 178° |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | <=250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Application Area | Indoor/Semi Outdoor/Outdoor |
Working Temperature | 0°C~50°C |
Storage Temperature | -20-60°C | -4-149°F |
46 LCD Video Wall Display Board Specification
Support | PC | color | 24bit |
signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI | color | 24bit | |
HDMI | Line synchronization range | 30-80KHZ | |
DP | Field synchronization range | 50-75HZ | |
Interface | input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
46 LCD Video Wall Display Details
