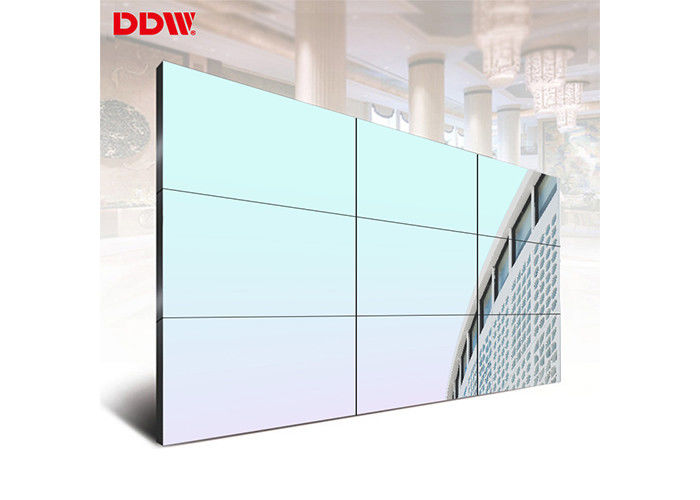

3x3 Standalone Seamless LCD Screens , Bezel Less Video Wall 55 Inch
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THB5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Surface: | Anti-glare | Product Name: | LCD Video Wall Display |
|---|---|---|---|
| Backlight: | LED | Resolution: | 1920*1080 |
| Input Voltage: | AC 220v-250v | Total Physical Bezel: | 1.8 Mm |
| Panel Width/mm: | 1211.4 | Panel Height/mm: | 682.2 |
| Highlight: | ultra narrow bezel video wall,video wall lcd screens |
||
Product Description
3x3 Standalone Seamless LCD Screens , Bezel Less Video Wall 55 Inch
Seamless LCD Screens basic informations:
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
Seamless LCD Screens main parameters
- Only 1.8 mm ultra narrow bezel, high quality ,practical ,good vision effect.
- Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- HD video wall unit--- High brightness,high contrast,high gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
Seamless LCD Screens Install:
Wall-mounted,floor stand, cabinet installation optional
Seamless LCD Screens Specifications:
| Model No: | DDW-LW550DUN-THB5 Seamless LCD Screens |
| Active Screen Diagonal | 55 Inch |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Service
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
Want to Know more details about this product
